The FortiGate network appliances represent the enterprise firewall platforms. FortiGate is based on FortiASIC, a purpose-built integrated architecture, that provides extremely high throughput and exceptionally low latency, while delivering excellent security effectiveness and consolidation.

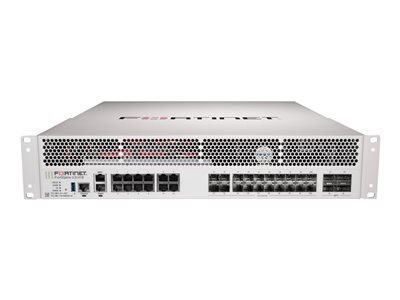

- Product Description Fortinet FortiGate 2200E - security appliance - with 3 years FortiCare Premium Support + 3 years FortiGuard Enterprise Protection
- Device Type Security appliance
- Bundled Services 3 years FortiCare Premium Support + 3 years FortiGuard Enterprise Protection
- Form Factor Front to back airflow rack-mountable - 2U
- Processor Fortinet FortiASIC CP9/NP6
- Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 25 Gigabit Ethernet
- Performance IPS throughput (enterprise traffic mix): 16.5 Gbps ¦ NGFW throughput (enterprise traffic mix): 13.5 Gbps ¦ Threat protection throughput (enterprise traffic mix): 11 Gbps ¦ Firewall throughput (1518-byte UDP): 158 Gbps ¦ Firewall throughput (512-byte UDP): 155 Gbps ¦ Firewall throughput (64-byte UDP): 100 Gbps ¦ IPv6 firewall throughput (1518-byte UDP): 158 Gbps ¦ IPv6 firewall throughput (512-byte UDP): 155 Gbps ¦ IPv6 firewall throughput (86-byte UDP): 100 Gbps ¦ Firewall latency (64-byte UDP): 3.09 µs ¦ Firewall throughput: 150 Mpps ¦ VPN throughput (512-bit IPSec): 98 Gbps ¦ VPN throughput (SSL): 10 Gbps ¦ SSL inspection throughput: 17 Gbps ¦ Application control throughput: 52 Gbps ¦ CAPWAP throughput: 60 Gbps
- Capacity Concurrent TCP sessions: 24000000 ¦ New TCP sessions per second: 500000 ¦ Firewall policies: 100000 ¦ Gateway to gateway IPSec VPN Tunnels: 20000 ¦ Client to gateway IPSec VPN tunnels: 100000 ¦ Concurrent SSL VPN users: 30000 ¦ SSL inspection CPS: 9500 ¦ Concurrent SSL connections: 2500000 ¦ Virtual domains: 10 ¦ Maximum virtual domains: 500 ¦ Number of FortiSwitches: 196 ¦ Number of FortiAP devices: 4096 ¦ Number of FortiAP devices (tunnel): 2048 ¦ Number of FortiToken devices: 20000
- Included Accessories 2 x 10Gb Ethernet SR SFP+ transceiver
- Power AC 100-240 V (50/60 Hz)
- Power Redundancy Yes
- Dimensions (WxDxH) 17.4 in x 21.9 in x 3.5 in
- Weight 40.12 lbs
|
