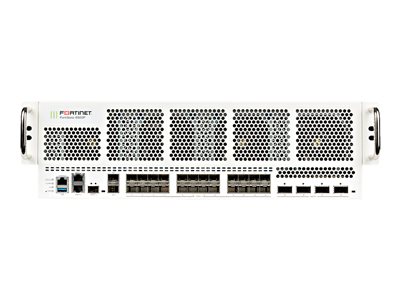

- Product Description Fortinet FortiGate 6001F - security appliance - with 3 years FortiCare Premium Support + 3 years FortiGuard Unified Threat Protection (UTP)
- Device Type Security appliance
- Bundled Services 3 years FortiCare Premium Support + 3 years FortiGuard Unified Threat Protection (UTP)
- Form Factor Front to back airflow rack-mountable - 3U
- Processor Fortinet FortiASIC CP9/DP3/NP6
- Hard Drive 960 GB x 2 - PCI Express (NVMe)
- Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet
- Performance IPS throughput (enterprise traffic mix): 170 Gbps ¦ NGFW throughput (enterprise traffic mix): 150 Gbps ¦ Threat protection throughput (enterprise traffic mix): 100 Gbps ¦ Firewall throughput (1518-byte UDP): 239 Gbps ¦ Firewall throughput (512-byte UDP): 238 Gbps ¦ Firewall throughput (64-byte UDP): 135 Gbps ¦ Firewall latency (64-byte UDP): 4.8 µs ¦ Firewall throughput: 202.5 Mpps ¦ VPN throughput (512-bit IPSec): 160 Gbps ¦ VPN throughput (SSL): 9 Gbps ¦ SSL inspection throughput: 110 Gbps ¦ Application control throughput: 220 Gbps
- Capacity Concurrent TCP sessions: 200000000 ¦ New TCP sessions per second: 3000000 ¦ Firewall policies: 200000 ¦ Gateway to gateway IPSec VPN Tunnels: 16000 ¦ Client to gateway IPSec VPN tunnels: 90000 ¦ Concurrent SSL VPN users: 30000 ¦ SSL inspection CPS: 50000 ¦ SSL inspection concurrent sessions: 18000000 ¦ Virtual domains: 10 ¦ Maximum virtual domains: 500 ¦ Number of FortiSwitches: 256 ¦ Number of FortiToken devices: 20000
- Included Accessories 2 x SR 10Gbps SFP+ transceivers
- Power AC 100-240 V (50/60 Hz)
- Power Redundancy Yes
- Dimensions (WxDxH) 17.2 in x 27.3 in x 5.2 in
- Weight 79.59 lbs
|
