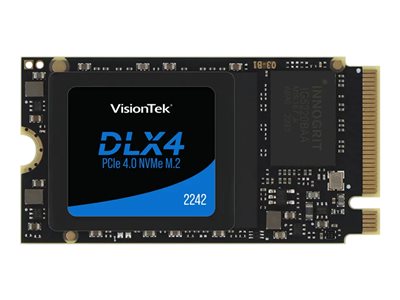

512GB M2 2242 SSD SED
512GB M2 2242 SSD SED
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | RoHS |
Manufacturer Warranty
| Service & Support | Limited warranty - 5 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Humidity Range Operating | 5 - 95% |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (operating) | 3.1 g @ 2-500 Hz |
General
| Device Type | Solid state drive - internal |
| Capacity | 512 GB |
| Hardware Encryption | Yes |
| Encryption Algorithm | 256-bit AES |
| Form Factor | M.2 2242 |
| Interface | PCIe 4.0 x4 (NVMe) |
| Features | SLC cache, IG5220 controller, 3D NAND Technology, Global Wear Leveling, StaticDataRefresh Technology, Data Shaping, Advanced Garbage Collection, NVM Express (NVMe) deallocate support, HMB (Host Memory Buffer) supported, NVMe Security Erase support, LDPC error correction, Dynamic and Static Wear Leveling, S.M.A.R.T., NVMe 1.4 |
| Width | 0.9 in |
| Depth | 1.7 in |
| Weight | 0.25 oz |
Expansion & Connectivity
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) - M.2 M key |
| Compatible Bay | M.2 2242 |
Performance
| SSD Endurance | 250 TB |
| Internal Data Rate | 4725 MBps (read) / 2525 MBps (write) |
| Maximum 4KB Random Write | 289000 IOPS |
| Maximum 4KB Random Read | 195000 IOPS |
Reliability
| MTBF | 1,500,000 hours |
| Non-Recoverable Errors | 1 per 10^15 |
Power
| Power Consumption | 4.75 Watt (active) ¦ 0.3 Watt (idle) |
