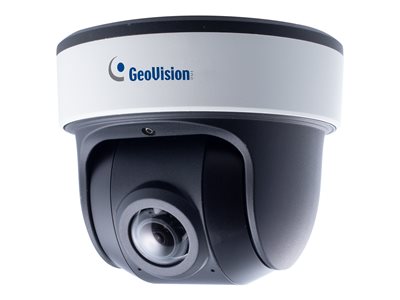

GV-PDR8800
GV-PDR8800
- Price:
$407.99
- Availability:
- Mfr #: 125-PDR8800-0010
- UNSPSC #: 43222631
- Item #: 011338010
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Interfaces
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, QOS, IGMP, ICMP, SSL |
Miscellaneous
| Included Accessories | Waterproof rubber set, screw kit, hex key |
| Compliant Standards | IEEE 802.1x, IEEE 802.3af, IP67, IK10, FCC |
Lens Construction
| Type | M12 mount - fixed focal |
| Focal Length | 1.68 mm |
| Lens Iris | F/2.0 fixed iris |
| Focus Adjustment | Fixed focus |
| Horizontal Field of View (degree) | 180 |
Tilting
| Range (degree) | 0 to 180 |
Image Sensor
| Type | 8 MP PS CMOS 1/2.8" |
Environmental Parameters
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 0 - 90% (non-condensing) |
General
| Device Type | Network panoramic camera |
| Audio Support | Yes: one-way audio capability, built-in microphone |
| Audio Formats | G.711 |
| Form Factor | Turret |
| Connectivity Technology | Wired |
| Width | 5 in |
| Depth | 5 in |
| Height | 4.2 in |
| Weight | 29.98 oz |
Camera
| Type | Color - Day&Night - fixed - outdoor - ingress protection / vandal resistant |
| Digital Video Format | H.265, H.264, MJPEG |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Exposure Range | 1 sec - 1/100000 sec |
| Minimum Illumination | 0.012 lux - color - F2.0 - AGC on ¦ 0 lux - IR |
| Infrared LEDs | 2 |
| Infrared Distance | 49 ft |
| Video Capture | 3840 x 2160 @ 25 fps ¦ 3456 x 1936, 60 Hz @ 30 fps ¦ 3456 x 1936, 50 Hz @ 25 fps |
| Features | Auto white balance, manual white balance, auto gain control, manual gain control, Wide Dynamic Range (WDR) Pro, infrared-cut filter, 62.8m detect distance, 24.7m observe distance, 10.9m recognize distance, 3.5m identify distance, 3 video streams, audio alarm, tamper-detection, Object Left detection, Removed Object Detection, Heat Map, flickerless, 3D Noise Reduction Technology, image flip, image mirror, AI Analytics, people counting, ONVIF (Profile G) support, ONVIF (Profile Q) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Super Low Lux, rugged housing, Intelligent IR Technology, text overlay, Privacy Mask Function, VoIP support |
Panning
| Range (degree) | 0 to 180 |
Expansion / Connectivity
| Ports | LAN - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC UHS-I Card |
Power
| Power Requirements | DC 12 V / PoE - 1.25 A |
