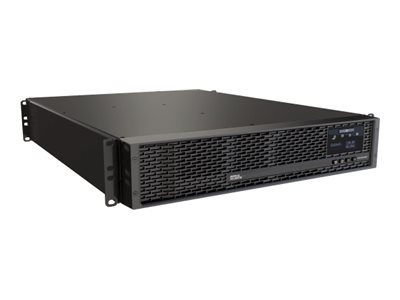

MIDDLE ATLANTIC PWER BKUP 2000VA/120VAC UPS
MIDDLE ATLANTIC PWER BKUP 2000VA/120VAC UPS
- Price:
$2,150.99
- Availability:
- Mfr #: UPX-RLNK-2000R-2
- UNSPSC #: 43210000
- Item #: 010824726
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable 6 ft |
| Features | Hot-swappable battery, Metal Oxide Varistor Technology (MOV), Automatic Voltage Regulation (AVR), EBM - External Battery Module - Auto Detection, LCD display, audible alarm, fault alarm, low battery alarm, overload alarm |
| Compliant Standards | CSA, cTUVus, UL 1778, FCC Class A certified, REACH, RoHS |
Networking
| Remote Management Interface | RS-232, USB, RJ-45 |
| Remote Management Protocol | SNMP 3, HTTP, HTTPS, SSH, RADIUS, Telnet |
Sustainability Information
| ENERGY STAR | Yes |
Dimensions & Weight
| Width | 19 in |
| Depth | 22 in |
| Height | 3.5 in |
| Weight | 63.05 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years |
Battery
| Quantity | 4 |
| Technology | Sealed Lead Acid (SLA) |
| Voltage Provided | 48 V |
| Capacity | 9 Ah |
| Run Time (Up To) | 3 min at full load ¦ 10 min at half load |
| Recharge Time | 6 hours |
| Transfer Time | 10 ms |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 50 dB |
General
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 2U |
| Rack Size | 19" |
| Cord Length | 6 ft |
| Color | Black |
Power Device
| UPS Technology | Line interactive |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 80 - 158 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA 5-20 |
| Power Output Connectors Details | 8 x power NEMA 5-20 |
| Output Voltage | AC 120 V |
| Max Electric Current | 20 A |
| Power Capacity | 1800 Watt / 2000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 1000 Joules |
| Circuit Protection | Circuit breaker |
| Power Factor (PF) | 0.9 |
Expansion / Connectivity
| Interfaces | 1 x management (RS-232) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x management - RJ-45 ¦ 2 x dry contact - terminal block ¦ 1 x EPO (emergency power off) - terminal block |
Dimensions & Weight (Shipping)
| Shipping Weight | 70.99 lbs |
