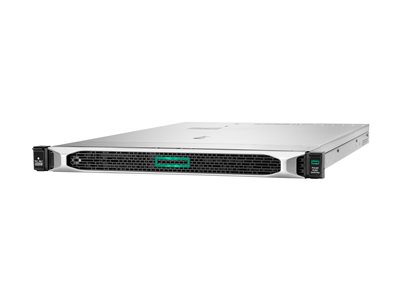

HPE DL360 G10+ 4314 MR416I-A NC 8SFF SVR
HPE DL360 G10+ 4314 MR416I-A NC 8SFF SVR
- Price:
$3,973.99
- Availability:
- Mfr #: P69749-005
- UNSPSC #: 43211501
- Item #: 011376066
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Cache Memory
| Installed Size | L3 cache - 24 MB |
| Cache Per Processor | 24 MB |
Miscellaneous
| Included Accessories | SFF Easy Install Rail Kit, CPU standard heatsink, 5 x standard fans |
| Compliant Standards | WEEE 2002/95/EC, TLS v1.2, ASHRAE Class A3, ASHRAE Class A4, ACPI 6.3, SMBIOS 3.2, Redfish API, Triple DES, Active Directory v1.0 |
| Manufacturer Selling Program | HPE Smart Choice |
Networking
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM57416 |
| Data Link Protocol | 10 Gigabit Ethernet |
| Remote Management Protocol | SNMP 3, IPMI 2.0 |
| Remote Management Controller | Integrated Lights-Out 5 |
| Features | Wake on LAN (WoL), PXE support |
Dimensions & Weight
| Width | 17.1 in |
| Depth | 29.2 in |
| Height | 1.7 in |
| Weight | 29.3 lbs |
Hard Drive
| Type | SSD - 2.5" |
| Capacity | 2 x 480 GB |
| Interface Type | SATA |
Graphics Controller
| Video Memory | 16 MB |
| Video Interfaces | VGA |
Monitor
| Monitor Type | None. |
Sustainability Information
| ENERGY STAR Certified | Yes |
Storage Controller
| Type | 1 x RAID |
| Controller Interface Type | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
| Storage Controller Name | Broadcom MegaRAID MR416i-a |
| Channel Qty | 16 |
| Buffer Size | 4 GB |
Manufacturer Warranty
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
Environmental Parameters
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
General
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Embedded Security | Trusted Platform Module (TPM) Security Chip |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 8 |
| Localization | Region: United States, Canada |
Processor / Chipset
| CPU | Intel Xeon Silver 4314 |
| Clock Speed | 2.4 GHz |
| Max Turbo Speed | 3.4 GHz |
| Number of Cores | 16-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Chipset Type | Intel C621A |
Expansion / Connectivity
| Bays | 8 (total) / 6 (free) x hot-swap 2.5" SFF |
| Slots | 1 (total) / 1 (free) x PCIe 4.0 x16 - full-height ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 - low-profile |
| Interfaces | 5 x USB 3.0 (1 front, 2 rear, 2 internal) ¦ 1 x HPE iLO - Type A (1 in front) (service port) ¦ 1 x VGA (1 rear) ¦ 1 x HPE iLO - RJ-45 (management port) ¦ 2 x LAN (10Gigabit Ethernet) |
Power
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V |
| Power Provided | 800 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
RAM
| Installed Size | 128 GB |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 2667 MHz |
| Rated Memory Speed | 3200 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 32 (total) / 28 (empty) |
| Features | HPE SmartMemory, slots 17 - 32 are available in two-processor configuration only |
| Configuration Features | 4 x 32 GB |
Optical Storage
| Type | No optical drive |
