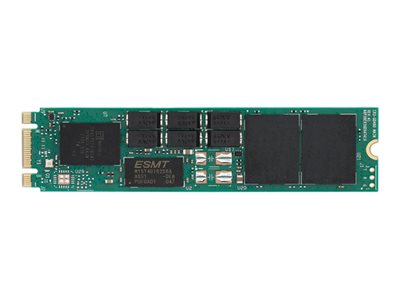

LENOVO M.2 ER3 240GB RI SATA NHS
LENOVO M.2 ER3 240GB RI SATA NHS
- Price:
$396.99
- Availability:
- Mfr #: 4XB7A89422
- UNSPSC #: 43210000
- Item #: 011367000
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | UL, BSMI, RoHS |
Manufacturer Warranty
| Service & Support | Limited warranty - replacement - 1 year |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 3.13 gRMS @ 5-800 Hz |
General
| Device Type | Solid state drive - internal |
| Capacity | 240 GB |
| Hardware Encryption | Yes |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | M.2 2280 |
| Interface | SATA 6Gb/s |
| Features | End-to-end data protection, Thermal throttling, Power Loss Protection (PLP), Inrush Current Protection, TRIM support, Native Command Queuing (NCQ), S.M.A.R.T. |
| Width | 0.9 in |
| Depth | 3.1 in |
| Height | 0.1 in |
| Weight | 0.35 oz |
Expansion & Connectivity
| Interfaces | 1 x SATA 6 Gb/s - M.2 Card |
| Compatible Bay | M.2 2280 |
Performance
| Drive Writes Per Day (DWPD) | 1 |
| SSD Endurance | 430 TB |
| Drive Class | Read Intensive |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 520 MBps (read) / 280 MBps (write) |
| 4KB Random Read | 90000 IOPS |
| 4KB Random Write | 10000 IOPS |
| Average Latency | 90 µs |
Reliability
| MTBF | 2,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
Power
| Power Consumption | 3.5 Watt (read) ¦ 3.8 Watt (write) |
