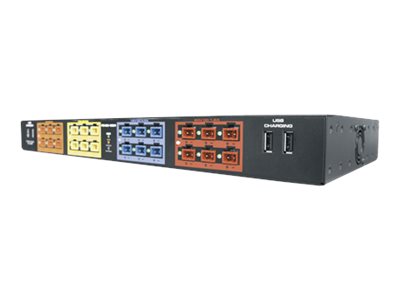

PWR DIST DC PWR DIST125W RKMNT
PWR DIST DC PWR DIST125W RKMNT
- Price:
$502.99
- Availability:
- Mfr #: PD-DC-125R
- UNSPSC #: 43210000
- Item #: 007560882
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Power cable - external - 6 ft |
| Features | Built-in cooling fan, color-coded, LED indicators, overload protection, temperature controlled fan, Metal Oxide Varistor Technology (MOV) |
| Compliant Standards | FCC Class B certified, ISO 9001, ISO 14001, UL 60950-1, cULus, RoHS 2011/65/EU, CAN/CSA-C22.2 No. 60950-1 |
Dimensions & Weight
| Width | 16.1 in |
| Depth | 7.2 in |
| Height | 1.7 in |
Manufacturer Warranty
| Service & Support | Limited warranty - parts and labor - 3 years |
Environmental Parameters
| Sound Emission | 28 dBA |
General
| Device Type | Power distribution unit - external |
| Cord Length | 6 ft |
Power Device
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 100 - 132 V |
| Frequency Required | 60 Hz |
| Input Connectors | 1 x power IEC 60320 C14 |
| Power Output Connectors Details | 6 x screw terminal - 5 V 3 A ¦ 6 x screw terminal - 12 V 2 A ¦ 6 x screw terminal - 18 V 2.5 A ¦ 6 x screw terminal - 24 V 1.2 A ¦ 4 x 4 pin USB Type A - 5 V 2.5 A |
| Output Voltage | 5 / 12 / 18 / 24 V |
| Max Electric Current | 11.2 A |
| Power Capacity | 600 Watt |
| Surge Suppression | Yes |
| Clamping Level | 595 V |
| Circuit Protection | Circuit breaker |
