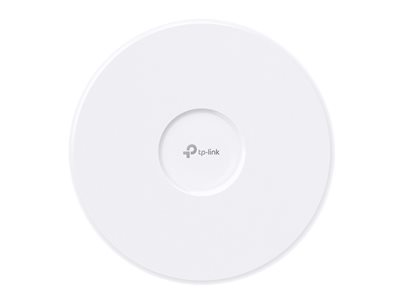

TP-LINK OMADA BE11000 CEILING MOUNT TRI-BAND WI-FI 7 ACCESS POINT PORT
TP-LINK OMADA BE11000 CEILING MOUNT TRI-BAND WI-FI 7 ACCESS POINT PORT
- Price:
$195.99
- Availability:
- Mfr #: EAP773
- UNSPSC #: 43223108
- Item #: 011541803
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Wall/ceiling mounting kit |
| Compliant Standards | IC, FCC, RoHS |
Networking
| Form Factor | Wall / ceiling mountable |
| Connectivity Technology | Wireless |
| Line Coding Format | 4096 QAM, OFDMA |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 10 Gigabit Ethernet, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7) |
| Spread Spectrum Method | OFDMA |
| Network / Transport Protocol | HTTP, HTTPs |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, SSH, NTP |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Performance | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 2880 Mbps ¦ Maximum data rate (6 GHz): 5760 Mbps ¦ Channel bandwidth: up to 320 MHz |
| Capacity | Maximum number of configured SSIDs: up to 24 ¦ Concurrent clients: 380+ ¦ Maximum MAC filters: 4000 |
| Wi-Fi Rating | BE9300 |
| Status Indicators | Power |
| Features | VLAN support, E-mail alert, Mesh networking, Wi-Fi Multimedia (WMM) support, Auto Channel Select (ACS), Quality of Service (QoS), rogue access point detection, 802.1x authentication, MU-MIMO technology, beamforming technology, scheduler, band steering, rate limit, Tri-Band, MAC address authentication, Airtime Fairness, Zero-touch provisioning (ZTP), load balance network mode, BSS Coloring, Multi-Link Operation (MLO), Multiple Resource Unit (MRU) |
| Encryption Algorithm | WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise, WPA3-Personal, Opportunistic Wireless Encryption (OWE), WPA2-Personal, WPA-Personal |
| Authentication Method | Secure Shell (SSH), RADIUS, Radio Service Set ID (SSID) |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11v, IEEE 802.3bt, IEEE 802.11ax, IEEE 802.11be, Wi-Fi CERTIFIED 7 |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
General
| Device Type | Wireless access point |
| Width | 8.7 in |
| Depth | 8.7 in |
| Height | 1.3 in |
| Weight | 25.96 oz |
Expansion / Connectivity
| Interfaces | 1 x 10GBase-T (PoE++) - RJ-45 |
Power
| Power Over Ethernet (PoE) Supported | PoE++ |
Antenna
| Antenna | Internal |
| Antenna Qty | 6 |
