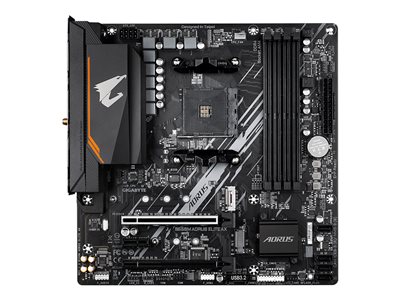

GIGABYTE B550M AORUS Elite AX
GIGABYTE B550M AORUS Elite AX
- Price:
$138.99
- Availability:
- Mfr #: B550M AORUS ELITE AX
- UNSPSC #: 43201513
- Item #: 011573314
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Graphics
| Max Allocated RAM Size | 16 GB |
Miscellaneous
| Software Included | Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control |
| Width | 9.6 in |
| Depth | 9.6 in |
Supported RAM
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3333 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 4733 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
LAN
| Network Interfaces | Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
General
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B550 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 3000 Series/ 3000 G-Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series) |
Features
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Hardware Features | On/Off Charge, Ultra Durable, Q-Flash Plus, Game Boost, Audio Noise Guard, GIGABYTE Double Locking Bracket, Anti-Sulfur Design, GIGABYTE Smart Fan 5, Ultra Durable PCIe Armor, Solid Pin Power Connectors, RGB FUSION 2.0, 5+3 Phase Power Design |
Audio
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | High Definition Audio |
Expansion / Connectivity
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with 3nd Generation Ryzen with Radeon Graphics CPU)) ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 |
| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 4 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 2 x antenna |
| Internal Interfaces | 1 x USB 2.0 - header ¦ 1 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
