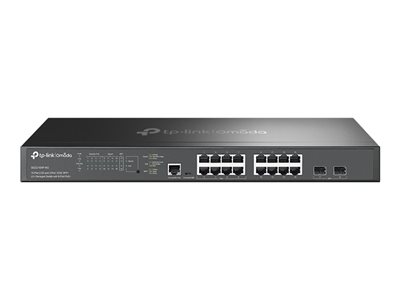

- Product Description TP-Link Omada SG3218XP-M2 V1.6 - switch - 16 ports - managed - rack-mountable
- Device Type Switch - 16 ports - L2+ - managed
- Enclosure Type Rack-mountable
- Subtype 2.5 Gigabit Ethernet
- Ports 8 x 2.5GBase-T + 8 x 100/1000/2.5G (PoE+) + 2 x 10Gb Ethernet SFP+ (uplink)
- Power Over Ethernet (PoE) PoE+
- PoE Budget 240 W
- Performance Switching capacity: 120 Gbps ¦ Packet forwarding rate: 89.28 Mpps ¦ Packet buffer size: 12 Mbit
- Capacity Priority queues: 8 ¦ IPv6 interfaces: 32 ¦ IPv4 interfaces: 32 ¦ Static routes: 48 ¦ Static ARP entries: 128 ¦ Total link aggregation groups: 8 ¦ Multicast filters: 256 ¦ Layer 2 multicast filtering entries per profile: 16 ¦ VLAN groups: 4000 ¦ MAC VLAN address entries: 256 ¦ IP MAC port binding entries: 512 ¦ IPv4 source guard entries: 100 ¦ IPv6 MAC port binding entries: 512 ¦ IPv6 source guard entries: 100 ¦ MAC addresses per port: 64
- MAC Address Table Size 16K entries
- Jumbo Frame Support 9KB
- Routing Protocol Static IP routing, STP, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2
- Remote Management Protocol IPv4, IPv6, RSTP, TCP/IP, UDP, DHCP, CLI, SSH, SSH-2, ICMP, Telnet, SNMP, HTTP, HTTPS, TFTP, MIB, RMON, RMON 2, SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 3, RMON 9, OAM
- Features 2 fans, CoS, QoS, DSCP prioritization, queue scheduling support, SP, WRR, rate limit, proxy ARP, ARP support, DHCP server, DHCP relay, VLAN support, Link Aggregation, BPDU Filter, TC/Root protection, loopback detection, flow control, HOL Blocking Prevention, port mirroring, IGMP snooping, fast leave, IGMP filtering, MLD snooping, MVR, device discovery, firmware upgradable, schedule reboot, GVRP, Voice VLAN, ACL support, ToS, DHCP snooping, ARP inspection, ND detection, DoS attack prevention, Port Security, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Guest VLAN, MAB, AAA, port isolation, path MTU discovery, cloud managed, ZTP, BOOTP support, LLDP-MED, Cable Diagnostics Function, EEE, SNTP support, system log, IPMB
- Compliant Standards IEEE 802.3at, IEEE 802.3af, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3ah
- Power AC 100-240 V (50/60 Hz)
- Dimensions (WxDxH) 17.3 in x 7.1 in x 1.7 in
- System Requirements Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, Apple MacOS, Novell NetWare, UNIX, Linux
|
