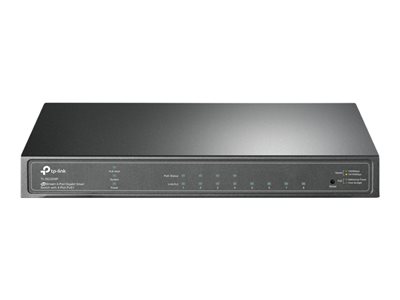

JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+.8 10/100/1000
JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+.8 10/100/1000
- Price:
$95.99
- Availability:
- Mfr #: SG2008P
- UNSPSC #: 43222612
- Item #: 011541679
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Rubber feet |
| Compliant Standards | FCC, RoHS |
Dimensions & Weight
| Width | 8.2 in |
| Depth | 5 in |
| Height | 1 in |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 90% RH (non-condensing) |
General
| Device Type | Switch - 8 ports - smart |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 + 4 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 62 W |
| Performance | Bandwidth: 16 Gbps ¦ Packet forwarding rate: 11.90 Mpps ¦ Packet buffer size: 4.1 Mbit |
| Capacity | Priority queues: 8 ¦ VLAN groups: 4000 ¦ IP router interfaces: 16 ¦ Static routes: 32 ¦ ACL entries: 230 ¦ IP source guard entries: 253 ¦ IPv6 source guard entries: 183 ¦ MAC addresses per port: 16 ¦ Binding entries: 512 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, DHCP, RSTP, RADIUS |
| Encryption Algorithm | MD5, SSL, SSL 3.0, PEAP, TLS 1.2, EAP-TLS, EAP-TTLS |
| Authentication Method | Secure Shell (SSH), RADIUS, PAP, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP), EAP-TLS, EAP-TTLS |
| Features | Flow control, auto-negotiation, BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DHCP snooping, ACL support, QoS, MLD snooping, Cable Diagnostics Function, DLDP support, fanless, LACP support, LLDP support, DHCP relay, Port Security, MIB, GVRP, NDP, port isolation, CoS, SP, 802.1x authentication, cloud managed, DSCP support, Storm Control, IP source guard, ARP inspection, Link Aggregation, scheduler, dual image support, SDN, AAA, LLDP-MED, ZTP, BPDU Filter, WRR, loopback detection, BPDU protection |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3af, IEEE 802.3at, IEEE 802.1ab (LLDP) |
| RAM | 256 MB |
| Flash Memory | 32 MB |
| Status Indicators | Status |
Expansion / Connectivity
| Interfaces | 4 x 1000Base-T RJ-45 ¦ 4 x 1000Base-T RJ-45 PoE+ - 30 W |
Power
| Power Device | External power adapter |
| Power Provided | DC 53.5 V - 1.31 A |
| Power Consumption Operational | 73.8 Watt |
| Power Consumption Stand by | 2.8 Watt |
Software / System Requirements
| OS Required | UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/10 |
