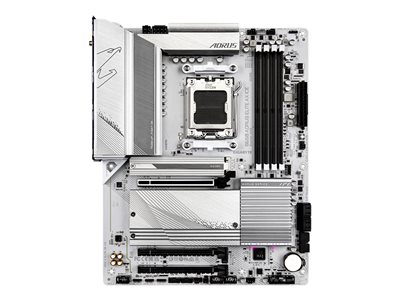

B650 AORUS ELITE AX ICE
B650 AORUS ELITE AX ICE
- Price:
$276.99
- Availability:
- Mfr #: B650 AORUS ELITE AX ICE
- UNSPSC #: 43201513
- Item #: 011630506
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | G-Connector, Wi-Fi antenna |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Norton Internet Security (OEM Version), GIGABYTE Control Center |
| Compliant Standards | DisplayPort 1.4, HDCP 2.3 |
| Width | 12 in |
| Depth | 9.6 in |
Supported RAM
| Max Size | 192 GB |
| Technology | DDR5 |
| Bus Clock | 4400 MHz, 4800 MHz, 5200 MHz, 5600 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6666 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.), 8000 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP) |
LAN
| Network Controller | Realtek RTL8852CE |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
General
| Product Type | Motherboard - ATX |
| Chipset Type | AMD B650 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000 Series) |
Features
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | Fan fail warning, fan speed detection, temperature detection, water cooling flow rate, system voltage |
| Hardware Features | Q-Flash Plus, Q-Flash, 12+2+2 Phase Power Design, 6 Layer PCB, 2x Copper PCB, DIY Friendly Design, GIGABYTE Smart Fan 6, M.2 EZ Latch plus, M.2 Thermal Guard, M.2 Thermal Guard Ext., MultiKey, PCIe EZ Latch, pre-mounted I/O shield, RGB FUSION, Solid Pin Power Connectors, Ultra Durable, Ultra Durable PCIe Armor, VRM heatsink design |
Audio
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
Expansion / Connectivity
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x16 (x1 mode) ¦ 3 x M.2 socket (2280/25110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB-C 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 5 x USB 3.2 Gen 1 ¦ 2 x antenna ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x serial - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
