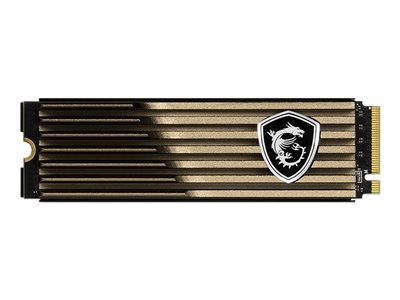

MSI SPATIUM M570 PCIE 5.0 NVME M.2 2TB HS
MSI SPATIUM M570 PCIE 5.0 NVME M.2 2TB HS
- Price:
$297.99
- Availability:
- Mfr #: SM570N2TBH
- UNSPSC #: 43201830
- Item #: 010963313
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Software & System Requirements
| Software Included | MSI Center |
Manufacturer Warranty
| Service & Support | Limited warranty - 5 years / 1400 TBW |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
General
| Device Type | Solid state drive - internal |
| Capacity | 2 TB |
| Integrated Heatsink | Yes |
| Form Factor | M.2 2280 |
| Interface | PCI Express 5.0 x4 (NVMe) |
| Features | NVM Express (NVMe) 2.0, TRIM support, LDPC error correction, End-to-end data protection, Autonomous Power State Transition (APST), 3D NAND Technology, Phison E26 controller, 4GB LPDDR4 DRAM cache, S.M.A.R.T. |
| Width | 0.9 in |
| Depth | 3.1 in |
| Height | 0.8 in |
Expansion & Connectivity
| Interfaces | 1 x PCI Express 5.0 x4 (NVMe) - M.2 Card |
| Compatible Bay | M.2 2280 |
Performance
| SSD Endurance | 1400 TB |
| Internal Data Rate | 10000 MBps (read) / 10000 MBps (write) |
| 4KB Random Read | 1400000 IOPS |
| 4KB Random Write | 1500000 IOPS |
Reliability
| MTBF | 1,600,000 hours |
Power
| Power Consumption | 11 Watt (maximum) |
