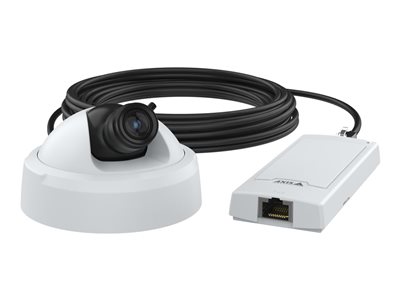

AXIS P1275 MK II MODULAR VARIFOCAL DOME CAMERA
AXIS P1275 MK II MODULAR VARIFOCAL DOME CAMERA
- Price:
$460.99
- Availability:
- Mfr #: 02859-001
- UNSPSC #: 46171610
- Item #: 011699166
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Owner authentication key, mounting bracket |
| Cables Included | 1 x sensor cable - external - 26 ft |
| TAA Compliant | Yes |
| Compliant Standards | IEEE 802.1x, IEEE 802.1ar, UL, cUL, KC, RCM, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1 Third Edition, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP3X, NIST SP500-267, ETSI EN 303 645, IEEE 802.1ae, PVC-free, RoHS 2011/65/EU Amendment 2015/863, EN/IEC 63000:2018, REACH 2006/1907, IEEE 802.3af, IEEE 802.3at |
| Color | White, NCS S 1002-B |
Lens Construction
| Type | M12 mount - vari-focal |
| Optical Zoom | 2.1 x |
| Focal Length | 2.8 mm - 6 mm |
| Lens Iris | F/2.0 fixed iris |
| Min Focus Distance | 3.9 in |
| Horizontal Field of View (degree) | 53 - 99 |
| Vertical Field of View (degree) | 30 - 53 |
Tilting
| Range (degree) | 0 to 90 |
Panning
| Range (degree) | 360 |
Software / System Requirements
| Software Included | AXIS Object Analytics, AXIS Video Motion Detection, AXIS Live Privacy Shield |
Interfaces
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, USGv6, ICMPv4, ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP, UDP, IGMP, IGMPv2, IGMPv3, RTCP, ICMP, DHCPv4, DHCPv6, ARP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf |
Manufacturer Warranty
| Service & Support | Limited warranty - 5 years |
Image Sensor
| Type | CMOS |
Environmental Parameters
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 113 °F |
| Relative Humidity (operating) | 10 - 85% RH (non-condensing) |
General
| Device Type | Network surveillance camera |
| Audio Support | Yes: audio through portcast technology |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Localization | Argentina, Australia, Brazil, China, Europe, Japan, Korea, United Kingdom, United States |
Camera
| Type | Color - fixed - indoor |
| Digital Video Format | H.264B, H.264M, H.264H, H.265, MJPEG, MPEG-4 Part 10, AVC, MPEG-H Part 2, HEVC |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Exposure Range | 1/5 sec - 1/16500 sec |
| Minimum Illumination | 0.2 lux - color - F2.0 - 50 IRE |
| Digital Video Capture Resolution | 1920 x 1080, 640 x 360, 1024 x 640, 640 x 400, 1024 x 768, 480 x 360 |
| Frame Rate (max) | 30 frames per second |
| RAM | 1 GB |
| Flash Memory | 512 MB |
| Features | Modular, deep learning processing unit (DLPU), Zipstream technology, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), Forensic WDR, dynamic text, image overlay, polygon privacy mask, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Pixel Counter Support, level grid, scene metadata, signed firmware, brute force delay protection, digest authentication, password protection, Axis Edge Vault, Axis device ID, secure keystore, signed video, secure boot, replaceable lens |
Expansion / Connectivity
| Ports | LAN - RJ-45 ¦ Sensor unit - RJ-12 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm | TLS 1.2, TLS 1.3 |
Power
| Power Requirements | PoE Plus Class 2 |
| Power Device | 3.4 Watt |
