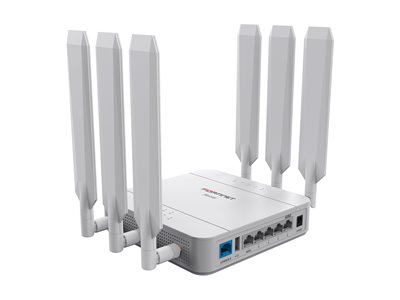

FORTIEXTENDERVEHICLE-212F SEMI-RUGGED DUAL MODEM BROADBAND WR
FORTIEXTENDERVEHICLE-212F SEMI-RUGGED DUAL MODEM BROADBAND WR
- Price:
$1,691.99
- Availability:
- Mfr #: FEV-212F-V
- UNSPSC #: 43222501
- Item #: 011955620
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | 2 x Wi-Fi antennas, Bluetooth antenna |
Dimensions & Weight
| Width | 7.2 in |
| Depth | 5.1 in |
| Height | 1.8 in |
| Weight | 34.21 oz |
Environmental Parameters
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 5 - 95% |
Communications
| Type | Wireless cellular modem |
| Cellular Protocol | LTE CAT12, WCDMA, HSPA+, UMTS |
| Generation | 4G, 3G |
| Cellular Band | LTE B28, LTE B1, LTE B12, LTE B13, LTE B18, LTE B19, LTE B2, LTE B20, LTE B26, LTE B29, LTE B3, LTE B30, LTE B32, LTE B4, LTE B41, LTE B42, LTE B43, LTE B46, LTE B48, LTE B5, LTE B66, LTE B7, LTE B8, LTE B9, UMTS B1, UMTS B2, UMTS B4, UMTS B5, UMTS B6, UMTS B8, UMTS B9, UMTS B19, WCDMA B1, WCDMA B2, WCDMA B4, WCDMA B5, WCDMA B6, WCDMA B8, WCDMA B9, WCDMA B19, HSPA+ B1, HSPA+ B2, HSPA+ B4, HSPA+ B5, HSPA+ B6, HSPA+ B8, HSPA+ B9, HSPA+ B19 |
| Max Transfer Rate | 600 Mbps |
General
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop, wall-mountable |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth |
| Frequency Band | 2.4 GHz / 5 GHz |
| Features | 2x2 MIMO technology, GNSS Bias, receiver diversity, receiver equalization, rugged, SD-WAN support, cloud managed |
| Compliant Standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, FCC Part 15 B, FCC Part 15 C, FCC 2.1091, ICES-003, RSS-247, RSS-102, R&TTE Directive 1999/5/EC, EN 300 328, EN 301 489, EN 301 893, EN 50385, Directive 2004/108/EU, Directive 2006/95/EC, EN55022, EN55024, EN 61000, IEC/EN 62368-1, IP64, EN 50155 Class S1, MIL-STD-810H, SAE J1455, IEC 60950-1:2005, UL 60950-1, CAN/CSA C22.2 No. 60950-1-07, RSS-210 Issue 7, RSS-Gen Issue 2, RSS-102 Issue 4, RoHS |
| Built-in Devices | GPS, GNSS receiver |
Expansion / Connectivity
| Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Antenna: 1 x SMA - LTE ¦ USB 2.0: 1 x |
| Expansion Slots | 2 (total) / 2 (free) x Micro-SIM |
Power
| Voltage Required | DC 7 - 36 V |
| Power Consumption Operational | 17.88 Watt |
Antenna
| Antenna Qty | 4 |
