CISCO-QLOGIC QLE2872 2X64GFC GEN 7 PCIE HBA

Need Help? Contact Zones Online support at 800.408.9663

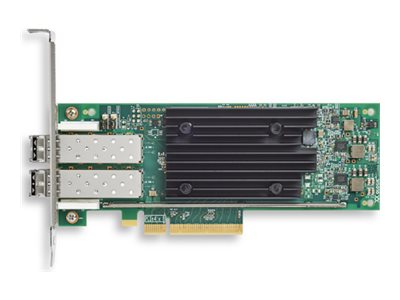

Product Description Marvell QLogic QLE2872-CSC - host bus adapter - PCIe 4.0 x8 - 64Gb Fibre Channel (Short Wave) x 2
Device Type Host bus adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express 4.0 x8
PCI Specification Revision PCIe 4.0
Ports 64Gb Fibre Channel (Short Wave) x 2
Dimensions (WxDxH) 6.6 in x 2.7 in
Cabling Type Fibre Channel
Data Link Protocol 64Gb Fibre Channel (Short Wave)
Max Transfer Distance 330 ft
Data Transfer Rate 64 Gbps
Performance Aggregate throughput: 25,600 Mbps � Bandwidth (full duplex): 12,800 Mbps
Capacity IOPS: 2000000 � Concurrent logins: 2048 � Active exchanges per port: 2048
Network / Transport Protocol MCTP
System Requirements VMware ESXi 6.x or later
Manufacturer Warranty 3-year warranty
