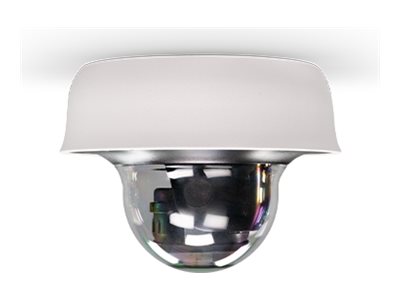

MERAKI FIXED LENS MINI-DOME, OUTDOOR 4MP CAMERA- 512GB
MERAKI FIXED LENS MINI-DOME, OUTDOOR 4MP CAMERA- 512GB
- Price:
$1,200.99
- Availability:
- Mfr #: MV63M-HW
- UNSPSC #: 45121603
- Item #: 301275922
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Interfaces
| Network Interface | IEEE 802.11b, IEEE 802.11g, Ethernet 10Base-T/100Base-TX/1000Base-T, IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac |
| Network Protocols | DSCP |
Miscellaneous
| Included Accessories | Wall mount kit |
| Compliant Standards | IEEE 802.1x, IK10+, IP67 |
Internet of Things (IoT)
| Internet of Things (IoT) Compatible | Yes |
| Communications Type | Cloud |
Lens Construction
| Type | Fixed focal |
| Focal Length | 3.3 mm |
| Lens Iris | F/2.0 |
| Horizontal Field of View (degree) | 102 |
Manufacturer Warranty
| Service & Support | Limited warranty - advanced replacement - 5 years |
Image Sensor
| Type | 8,410,000 pixels CMOS 1/2.8" |
Environmental Parameters
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 122 °F |
General
| Device Type | Network surveillance camera |
| Audio Support | Yes: built-in three microphones |
| Form Factor | Dome |
| Camera Mount Type | Ceiling mount, wall mount |
| Connectivity Technology | Wired, wireless |
| Width | 5.2 in |
| Depth | 5.2 in |
| Height | 3.7 in |
| Weight | 32.45 oz |
Camera
| Type | Color - Day&Night - fixed - outdoor |
| Digital Video Format | H.264 |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Video Modes | 4K, 1080p |
| Exposure Range | 1/30 sec - 1/32000 sec |
| Infrared LEDs | Yes |
| Infrared Distance | 66 ft |
| Video Capture | 3840 x 2160 @ 15 fps ¦ 2560 x 1440 @ 24 fps ¦ 1920 x 1080 @ 24 fps |
| Flash Memory | 512 GB |
| Features | Heater, Smart Codec, High Dynamic Range (HDR), up to 256 QAM, integrated omnidirectional antennas, management encryption, two-factor authentication, WPA, WPA2-PSK, WPA2-Enterprise, reset button, LED indicator, Object Detection, night vision, role-based user accounts, secure boot, signed firmware |
Expansion / Connectivity
| Ports | LAN/power - RJ-45 |
| Encryption Algorithm | 256-bit AES, TLS, WPA, WPA2-PSK, WPA2-Enterprise, EAP-TTLS, TKIP |
Power
| Power Requirements | PoE Plus |
