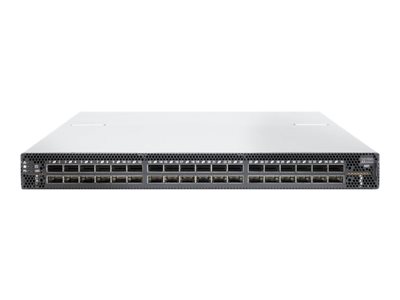

Mellanox Switch-IB 2 SB7890 - switch - 36 ports - smart - rack-mountable
Mellanox Switch-IB 2 SB7890 - switch - 36 ports - smart - rack-mountable
- Price:
$27,158.99
- Availability:
- Mfr #: 0724Y14
- UNSPSC #: 43222612
- Item #: 301318702
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | VCCI, CB, FCC, RoHS, ICES, cTUVus, ISO 7779, ETS 300 753, RCM, CU |
Dimensions & Weight
| Width | 16.9 in |
| Depth | 27 in |
| Height | 1.7 in |
| Weight | 24.25 lbs |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 90% (non-condensing) |
General
| Device Type | Switch - 36 ports - smart |
| Enclosure Type | Rack-mountable 1U |
| Subtype | InfiniBand |
| Ports | 36 x 100 Gigabit QSFP28 |
| Performance | Data throughput: 7.2 Tbps ¦ Latency: 90 ns |
| Features | InfiniBand EDR Link support, adaptive routing, congestion control, non blocking ports, VL2VL mapping, Co-Design SHArP technology, OPSE |
| Compliant Standards | IBTA 1.21, IBTA 1.3 |
| Status Indicators | Power, error, link/activity, fan |
Expansion / Connectivity
| Interfaces | 36 x 100Gbit LAN QSFP28 ¦ 1 x management (Gigabit LAN) |
Power
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 122 Watt |
