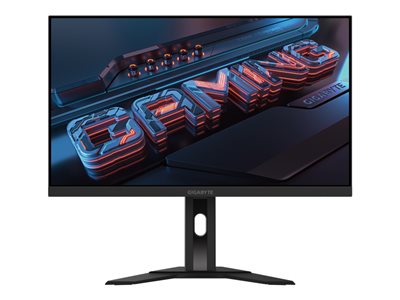

GIGABYTE - M27U ADVANCED (SA)
GIGABYTE - M27U ADVANCED (SA)
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Features | Security lock slot (cable lock sold separately) |
| Included Accessories | Power cable |
| Cables Included | 1 x HDMI cable ¦ 1 x DisplayPort cable ¦ 1 x USB cable |
| MTBF | 30,000 hour(s) |
| Compliant Standards | TUV Hardware Low Blue Light Certification, CEC, DisplayPort 1.4 |
| Security Slot Type | Kensington security slot |
Dimensions & Weight
| Dimensions & Weight Details | With stand - width: 24.2 in - depth: 7.6 in - height: 21.1 in - weight: 12.8 lbs ¦ Without stand - width: 24.2 in - depth: 1.7 in - height: 14.5 in - weight: 9 lbs |
Mechanical
| Display Position Adjustments | Tilt, height |
| Tilt Angle | -5/+20 |
| Height Adjustment | 5.1 in |
| VESA Mounting Interface | 100 x 100 mm |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
General
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/1956280 |
| Energy Class | Class G |
| Energy Class (HDR) | Class G |
| Diagonal Size | 27" |
| Adaptive-Sync Technology | AMD FreeSync Premium |
| Built-in Devices | USB 3.2 hub, KVM switch |
| USB Power Delivery | 18 Watt |
| Panel Type | SS IPS |
| Aspect Ratio | 16:9 |
| Native Resolution | 4K UHD (2160p) 3840 x 2160 at 160 Hz |
| Pixel Pitch | 0.15525 mm |
| Brightness | 400 cd/m² |
| Contrast Ratio | 1000:1 |
| HDR Certification | DisplayHDR 400 |
| Color Support | 1.07 billion colors (8-bit + FRC) |
| Color Gamut | 95% DCI-P3, 128% sRGB |
| Response Time | 1 ms (MPRT), 5 ms (gray-to-gray) |
| Gaming | Yes |
| Horizontal Viewing Angle | 178 |
| Vertical Viewing Angle | 178 |
| Screen Coating | Anti-glare |
| Backlight Technology | Edge-lit LED |
| Features | Adaptive-Sync technology, Flicker Free technology, KVM, 3-sided bezeless, 5-way joystick, picture in picture, picture by picture, HDR (high dynamic range), 6-axis color control, OSD Sidekick, Aim Stabilizer Sync, Dashboard, auto-update, Black Equalizer 2.0, built-in game timer, Crosshair Display, Eagle Eye, FPS Counter, night vision mode, Picture Mode, Smart OD |
| Dimensions (WxDxH) | 24.2 in x 7.6 in x 21.1 in - with stand |
| Weight | 12.79 lbs |
Connectivity
| Interfaces | 2 x HDMI ¦ DisplayPort ¦ Headphones (mini-jack) ¦ USB 3.2 upstream (Type B) ¦ 3 x USB 3.2 downstream (Type A) ¦ USB-C/DisplayPort Alt Mode (Alt Mode, power up to 18W) |
Audio
| Type | Speakers - stereo |
| Output Power / Channel | 3 Watt |
Dimensions & Weight (Shipping)
| Shipping Width | 33.9 in |
| Shipping Depth | 4.7 in |
| Shipping Height | 18.5 in |
| Shipping Weight | 18.96 lbs |
Power
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption SDR (On mode) | 26 kWh/1000h |
| Power Consumption HDR (On mode) | 47 kWh/1000h |
| Power Consumption (Typical) | 34 Watt |
| Power Consumption Stand by | 0.5 Watt |
| Power Consumption (Off Mode) | 0.3 Watt |
Software / System Requirements
| Included Software | Gigabyte Control Center |
