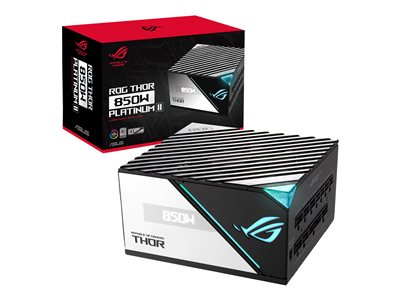

ROG-THOR-850P2-GAMING

Need Help? Contact Zones Online support at 800.408.9663

Miscellaneous

Included Accessories	Screws, 10 cable ties, ROG sticker, 6 x ROG cable ties, cable combs
Cables Included	AC input cable - external � Power 24 pin ATX with detachable 4 pin section modular cable 2 ft � 2 x power 8 pin +12V with detachable 4 pin section modular cable 2 ft � 16-pin 12VHPWR power cable 2.2 ft � 3 x 8 pin PCI Express power with detachable 2 pin section modular cable � 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable � 3 x Serial ATA cable � ARGB sync cable � 2 x 4 pin internal power cable
Cooling System	135 mm fan
Features	Sleeved cables, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, thermal protection, OLED display, fully modular, ASUS Aura Sync, ROG heatsink, 0db Technology, Lambda A++ Certification
Compliant Standards	RoHS

Dimensions & Weight

Manufacturer Warranty

Service & Support

Limited warranty - 10 years � Limited warranty - OLED panel - 3 years � Limited warranty - RGB LEDs - 3 years

General

Power Device

Input Voltage	AC 100-240 V
Power Output Connectors Details	1 x power 24 pin ATX with detachable 4 pin section � 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section � 1 x 16 pin PCI Express power � 7 x 8 pin PCI Express power with detachable 2 pin section � 10 x 15 pin Serial ATA power � 6 x 4 pin internal power
Output Voltage	+3.3, +5, �12 V
Power Capacity	850 Watt
Output Current	+3.3V - 20 A � +5V - 20 A � +12V - 71 A � -12V - 0.3 A � +5VSB - 3 A
Efficiency	92%
Modular Cable Management	Yes
80 PLUS Certification	80 PLUS Platinum
