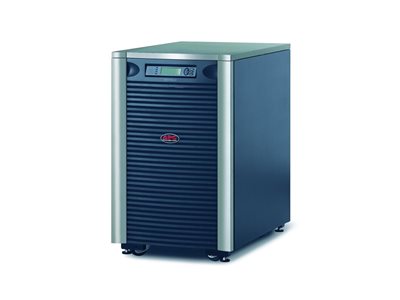

APC Symmetra LX 16kVA Scalable to 16kVA N+1 - power array - 16000 VA
APC Symmetra LX 16kVA Scalable to 16kVA N+1 - power array - 16000 VA
- Price:
$20,785.99
- Availability:
- Mfr #: SYA16K16P
- UNSPSC #: 39121011
- Item #: 01226456
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Features | Emergency power off, LCD display, audible alarm |
| Compliant Standards | FCC Class A certified, CSA, UL 1778 |
Networking
| Remote Management Interface | Ethernet 10/100 |
| Remote Management Protocol | SNMP, HTTP |
Dimensions & Weight
| Width | 18.9 in |
| Depth | 28.7 in |
| Height | 37 in |
| Weight | 679.02 lbs |
Manufacturer Warranty
| Service & Support Details | Limited warranty - 2 years |
Battery
| Technology | Lead acid |
| Run Time (Up To) | 6 min at full load |
| Recharge Time | 3 hours |
Environmental Parameters
| Max Operating Temperature | 104 °F |
| Min Storage Temperature | 5 °F |
| Max Storage Temperature | 113 °F |
| Humidity Range Operating | 0 - 95% |
| Humidity Range Storage | 0 - 95% |
General
| Device Type | Power array - external |
| Color | Black, silver |
| Output Connectors | 1 x hardwire |
Power Device
| Supported Battery Technology | Lead acid |
| Input Voltage | AC 208/240 V |
| Input Voltage Range | AC 155 - 276 V |
| Frequency Provided | 47 - 63 Hz |
| Frequency Required | 45 - 65 Hz |
| Input Connector(s) | 1 x hardwire |
| Input Connectors | 1 x hardwire |
| Power Output Connectors Details | 1 x hardwire |
| Output Voltage | AC 120/208/240 V ± 5% - 47 - 63 Hz |
| Power Capacity | 16000 VA |
| Output Waveform | Sinewave |
Expansion / Connectivity
| Expansion Slot(s) | 3 (total) / 2 (free) x SmartSlot |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (Ethernet) - RJ-45 |
| Expansion Slots | 3 (total) / 2 (free) x SmartSlot |
Software / System Requirements
| Software Included | APC PowerChute Symmetra Bundle |
