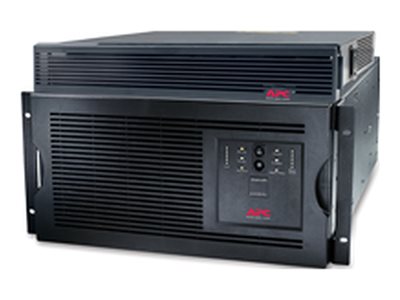

SMART UPS 5KVA RM W/TRNSFORMER 208V INPUT 120/20
SMART UPS 5KVA RM W/TRNSFORMER 208V INPUT 120/20
- Price:
$6,644.99
- Availability:
- Mfr #: SUA5000R5TXFMR
- UNSPSC #: 39121011
- Item #: 02305613
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Compatibility Information
| Designed For | P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR7050, AR7057, AR8135BLK, NBWL0356A, SMX2000LV, SMX2000LVUS, SMX3000HVT, SMX3000HVTUS, SRT1000RMXLA-NC, SRT1500RMXLA, SU2000R3X155, SU2200R3X167 |
Miscellaneous
| Cables Included | Power cable 8 ft ¦ Serial cable - external |
| Rack Mounting Kit | Included |
| Equipment Protection Value | 150000 US Dollars |
| Features | Audible alarm, LED indicators, noise filtering |
| Compliant Standards | FCC Class A certified, CSA, UL 1449, UL 1778, FCC Part 15 |
Networking
| Remote Management Interface | Ethernet 10/100, RS-232 |
| Remote Management Protocol | SNMP, Telnet, HTTP |
Dimensions & Weight
| Width | 19 in |
| Depth | 25 in |
| Height | 12.2 in |
| Weight | 319.67 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 2 years |
| Service & Support Details | Limited warranty - 2 years |
Battery
| Quantity | 2 |
| Technology | Lead acid |
| Run Time (Up To) | 9.4 min at full load |
| Recharge Time | 3 hours |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Sound Emission | 53 dBA |
General
| Device Type | UPS - external |
| Battery Enclosure Type | Internal |
| Height (Rack Units) | 7U |
| Color | Black |
| Output Connectors | 15 x power NEMA 5-15, power NEMA 5-20, power NEMA L6-20 |
| Bundled with | 208V to 120/208V Transformer |
Power Device
| UPS Technology | Line interactive |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 157 - 255 V |
| Input Voltage Range (Adjustable) | AC 151 - 268 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connector(s) | 1 x power NEMA L6-30 |
| Input Connectors | 1 x power NEMA L6-30 |
| Power Output Connectors Details | 1 x power NEMA L6-30R ¦ 12 x power NEMA 5-20R ¦ 2 x power NEMA L6-20R |
| Output Voltage | AC 120/208 V ± 5% - 50/60 Hz |
| Power Capacity | 4 kW / 5000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 1020 Joules |
Expansion / Connectivity
| Expansion Slot(s) | 1 (total) / 0 (free) x SmartSlot |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (Ethernet) - RJ-45 |
| Expansion Slots | 1 (total) / 0 (free) x SmartSlot |
Dimensions & Weight (Shipping)
| Shipping Width | 24 in |
| Shipping Depth | 30 in |
| Shipping Height | 25 in |
| Shipping Weight | 354.94 lbs |
Software / System Requirements
| Software Included | Drivers & Utilities |
