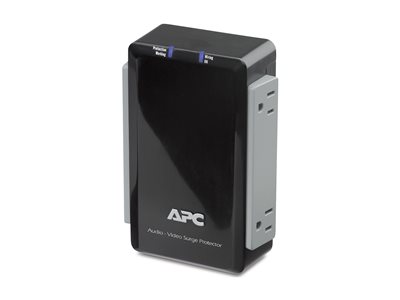

APC Audio/Video Surge Protector 4 Outlet with Coax
APC Audio/Video Surge Protector 4 Outlet with Coax
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | cUL, UL 1449, RoHS Exemption 7b |
Dimensions & Weight
| Width | 4.5 in |
| Depth | 2.2 in |
| Height | 6.5 in |
| Weight | 12.7 oz |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
| Service & Support Details | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
General
| Device Type | Surge protector - external |
| Color | Black |
| Output Connectors | 4 x power NEMA 5-15 |
Power Device
| Input Voltage | AC 120 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA 5-15 |
| Input Connector(s) | 1 x power NEMA 5-15 |
| Power Output Connectors Details | 4 x power NEMA 5-15 |
| Max Electric Current | 15 A |
| Dataline Surge Protection | Cable TV |
| Surge Suppression | Yes |
| Surge Energy Rating | 1700 Joules |
| EMI/RFI Noise Filtration | 20 dB |
| Clamping Level | 330 V |
Dimensions & Weight (Shipping)
| Shipping Width | 7.3 in |
| Shipping Depth | 2.7 in |
| Shipping Height | 7.6 in |
| Shipping Weight | 1.1 lbs |
