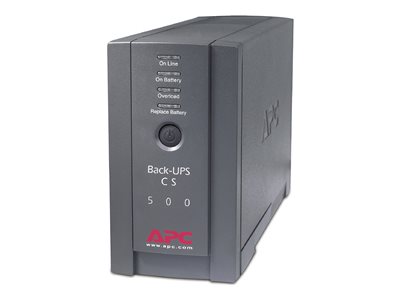

BACK UPS 500 500VA STANDBY-LAN 5 MIN FULL 6-OUTLET
BACK UPS 500 500VA STANDBY-LAN 5 MIN FULL 6-OUTLET
- Price:
$172.99
- Availability:
- Mfr #: BK500BLK
- UNSPSC #: 39121011
- Item #: 05303557
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Compatibility Information
| Designed For | P/N: ACF600, AR106, AR106SH4, AR106SH6, AR109SH4, AR109SH6, AR112, AR112SH4, AR112SH6, AR8213, NBWL0356A |
Miscellaneous
| Cables Included | USB cable - external ¦ Power cable 6 ft |
| Equipment Protection Value | 25000 US Dollars |
| Features | Audible alarm |
| Compliant Standards | FCC Class B certified |
Dimensions & Weight
| Width | 3.6 in |
| Depth | 11.2 in |
| Height | 6.5 in |
| Weight | 13.89 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - battery - 1 year |
| Service & Support Details | Limited warranty - 2 years |
Battery
| Technology | Lead acid |
| Run Time (Up To) | 5.7 min at full load |
| Recharge Time | 8 hours |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Min Storage Temperature | 5 °F |
| Max Storage Temperature | 113 °F |
| Humidity Range Operating | 0 - 95% |
| Humidity Range Storage | 0 - 95% |
| Sound Emission | 45 dBA |
General
| Device Type | UPS - external |
| Battery Enclosure Type | Plug-in module |
| Color | Black |
| Output Connectors | 6 x power NEMA 5-15 |
| Localization | Argentina, Aruba, Colombia, Venezuela, Belize, Canada, Chile, Mexico, Virgin Islands, Puerto Rico, Bolivia, Uruguay, Peru, Paraguay, Ecuador, Honduras, Guatemala, Costa Rica, Salvador, Panama, Nicaragua, Dominican Republic, Jamaica, Falkland Isles, Guyana, Barbados, Antigua and Barbuda, Cuba, Anguilla, Netherlands Antilles, Brazil, United States |
Power Device
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 98 - 140 V |
| Frequency Required | 50/60 Hz |
| Input Connector(s) | 1 x power NEMA 5-15 |
| Input Connectors | 1 x power NEMA 5-15 |
| Power Output Connectors Details | 3 x power NEMA 5-15 (surge) ¦ 3 x power NEMA 5-15 |
| Output Voltage | AC 120 V |
| Power Capacity | 300 Watt / 500 VA |
| Output Waveform | Stepped approximation to a sinewave |
| Surge Suppression | Yes |
| Surge Response Time | 0 ms |
| Surge Energy Rating | 480 Joules |
| Compliant Standards | cUL, CSA, UL 1778, UL 1449 |
Expansion / Connectivity
| Interfaces | 1 x modem - RJ-11 ¦ 1 x USB - 4 pin USB Type B |
Software / System Requirements
| Software Included | APC PowerChute USB Bundle |
