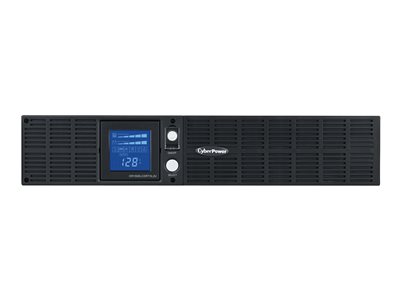

1500VA OR UPS SMART APP XL 2U 8OUT LCD AVR RJ11/45
1500VA OR UPS SMART APP XL 2U 8OUT LCD AVR RJ11/45
- Price:
$775.99
- Availability:
- Mfr #: OR1500LCDRTXL2U
- UNSPSC #: 39121011
- Item #: 03039568
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | USB cable ¦ 2 x serial cable ¦ Power cable 10 ft |
| Features | Audible alarm, LCD display, Automatic Voltage Regulation (AVR), LED indicators, GreenPower UPS Technology, noise filtering, overload protection |
| Compliant Standards | ISO 9001, cUL, DOC-B, UL 1778, FCC, RoHS |
Networking
| Remote Management Interface | RS-232, USB |
Dimensions & Weight
| Width | 17 in |
| Depth | 18.8 in |
| Height | 3.5 in |
| Weight | 59.52 lbs |
Manufacturer Warranty
| Service & Support Details | Limited warranty - 3 years |
Battery
| Quantity | 4 |
| Technology | Lead acid |
| Voltage Provided | 12 V |
| Capacity | 7 Ah |
| Run Time (Up To) | 7 min at full load |
| Recharge Time | 8 hours |
Environmental Parameters
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% |
General
| Device Type | UPS - external |
| Height (Rack Units) | 2U |
| Output Connectors | 8 x power NEMA 5-15 |
Power Device
| UPS Technology | Line interactive |
| Input Voltage | AC 90-140 V |
| Frequency Provided | 60 Hz |
| Frequency Required | 47 - 63 Hz |
| Input Connector(s) | 1 x power NEMA 5-15 |
| Input Connectors | 1 x power NEMA 5-15 |
| Power Output Connectors Details | 8 x power NEMA 5-15 |
| Output Voltage | AC 120 V ± 10% - 60 Hz |
| Power Capacity | 1125 Watt / 1500 VA |
| Dataline Surge Protection | Network/phone line - RJ-45/RJ-11 ¦ Cable TV |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 1840 Joules |
| Circuit Protection | Circuit breaker |
Expansion / Connectivity
| Interfaces | 2 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) |
Software / System Requirements
| Software Included | PowerPanel Business Edition |
| OS Required | Microsoft Windows 2000, Microsoft Windows XP, Microsoft Windows XP 64-bit Edition, Microsoft Windows 7, Microsoft Windows 2003, Microsoft Windows Server 2008, Microsoft Windows Vista (32/64 bits) |
