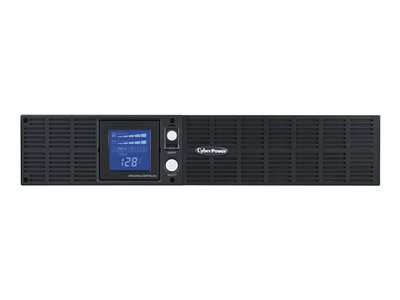

UPS SMART APP LCD 2200VA XL 2U AVR 8OUT RJ11/45/COAX 3YR
  • Price:
    $822.95
« Back

UPS SMART APP LCD 2200VA XL 2U AVR 8OUT RJ11/45/COAX 3YR

UPS SMART APP LCD 2200VA XL 2U AVR 8OUT RJ11/45/COAX 3YR

  • Price:
    $822.95
  • Availability:
  • Mfr #:  OR2200LCDRTXL2U
  • UNSPSC #:  39121011
  • Item #:  03039570
  • Add to Shopping List
  • cnet cat code #:  10061403
Need Help? Contact Zones Online support at 800.408.9663
Miscellaneous
Cables Included USB cable - external ¦ 2 x serial cable - external ¦ Power cable - integrated - 10 ft
Equipment Protection Value 300000 US Dollars
Features Audible alarm, LCD display, Automatic Voltage Regulation (AVR), GreenPower UPS Technology
Compliant Standards FCC Class B certified, ISO 9001, cUL, DOC-B, RoHS
Networking
Remote Management Interface RS-232, USB
Dimensions & Weight
Width 17 in
Depth 18.8 in
Height 3.5 in
Weight 89.99 lbs
Manufacturer Warranty
Service & Support Details Limited warranty - 3 years
Battery
Quantity 4
Technology Lead acid
Voltage Provided 12 V
Capacity 9 Ah
Run Time (Up To) 6 min at full load
Recharge Time 8 hours
Environmental Parameters
Max Operating Temperature 104 °F
Humidity Range Operating 0 - 90%
General
Device Type UPS - external
Height (Rack Units) 2U
Output Connectors 8 x power NEMA 5-20
Power Device
UPS Technology Line interactive
Input Voltage AC 90-140 V
Frequency Provided 60 Hz
Frequency Required 47 - 63 Hz
Input Connector(s) 1 x power NEMA 5-20
Input Connectors 1 x power NEMA 5-20
Power Output Connectors Details 8 x power NEMA 5-20
Output Voltage AC 120 V ± 5% - 60 Hz
Power Capacity 1650 Watt / 2190 VA
Dataline Surge Protection Network/phone line - RJ-45/RJ-11
Output Waveform Sinewave
Surge Suppression Yes
Surge Energy Rating 2060 Joules
Circuit Protection Circuit breaker
Expansion / Connectivity
Interfaces 2 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B
Expansion Slot(s) 1 (total) / 1 (free) x expansion slot
Expansion Slots 1 (total) / 1 (free) x expansion slot
Software / System Requirements
Software Included PowerPanel Business Edition
OS Required Microsoft Windows 2000, Microsoft Windows XP, Microsoft Windows XP 64-bit Edition, Microsoft Windows 7, Microsoft Windows 2003, Microsoft Windows Server 2008, Microsoft Windows Vista (32/64 bits)
