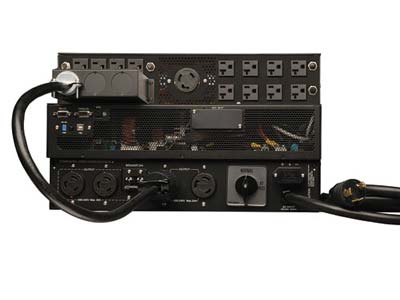

Featuring true on-line operation with pure sine wave output, zero transfer time to battery and complete UPS replacement capability with no downtime, the SU6000RT4UTF provides the highest level of protection available for mission-critical equipment from all power problems. It converts incoming AC power to DC, and re-converts it back to filtered AC output with a pure sine wave, providing ultimate protection. The SU6000RT4UTF has a 6kVA/5400W capacity and 16 AC outlets (4 5-15R; 8 5-15/20R; 2 L6-20R; 2 L6-30R). Using the 2U transformer, the SU6000RT4UTF can support both low- and high-voltage equipment.

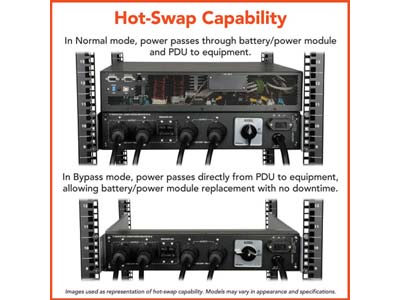

With its detachable PDU, the SU6000RT4UTF is easily hot-swappable by a user of any skill set-no need for lengthy and expensive service calls, and no downtime if a repair or battery replacement is needed. In bypass mode, the PDU passes power to equipment without the use of the power and battery modules, allowing them to be removed while keeping your application in operation.
UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The SU6000RT4UTF's runtime can be expanded with external battery packs.
The SU6000RT4UTF features a highly efficient (94%) economy mode setting that can significantly reduce a facility's energy costs by minimizing heat output, reducing cooling requirements and consuming less electricity.
An LCD display with LED indicators enables IT personnel to monitor operating modes and conditions. The LCD/LED panel rotates for viewing in horizontal rack or vertical tower installations and includes an audible alarm that signals various conditions.
The SU6000RT4UTF features a USB port and a DB9 port that, when used with Tripp Lite's included PowerAlert software, provide comprehensive network power monitoring and control. An optional SNMPWEBCARD accessory can enable the UPS to operate as an IP managed device.

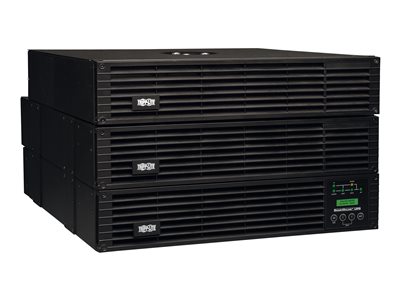

The unit requires only 4U of rack space in a standard rack enclosure and can be installed in a 2-post rack using the 2POSTRMKITWM accessory, or in a tower configuration with the 2-9USTAND accessory.
The SU6000RT4UTF comes with $250,000 Ultimate Lifetime Insurance coverage for connected equipment and a 2-year warranty.
- Product Description Tripp Lite UPS Smart Online 6000VA 5400W Rackmount 6kVA 208/240/120V USB DB9 Manual Bypass Hot Swap 6URM - UPS - 5.4 kW - 6000 VA
- Device Type UPS - external
- Rack Size 19" - 6U
- Weight 116.4 lbs
- Input Voltage AC 208/240 V
- Output Voltage AC 120/208/240 V ± 2%
- Power Capacity 5.4 kW / 6000 VA
- Input Connectors 1 x power NEMA L6-30
- Output connectors 4 x power NEMA 5-15 (UPS and surge) ¦ 8 x power NEMA 5-15/20 (UPS and surge) ¦ 2 x power NEMA L6-20 (UPS and surge) ¦ 2 x power NEMA L6-30
- Battery Form Factor Internal
- Run Time (Up To) 2 min at full load
- Networking RS-232, USB
- Dimensions (WxDxH) 17.5 in x 20.7 in x 6.9 in
- Manufacturer Warranty 2-year warranty
|
