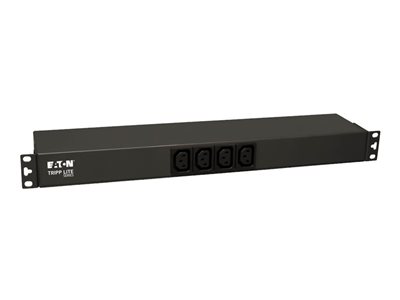

The PDUH20DV 1.6?3.8kW Single-Phase 100?240V Basic PDU is a versatile no-frills unit for data centers, server rooms and network wiring closets. Perfectly suited for high-density IT environments, the PDUH20DV features 14 total outlets?four C13 in front and eight C13 and two C19 in the rear.

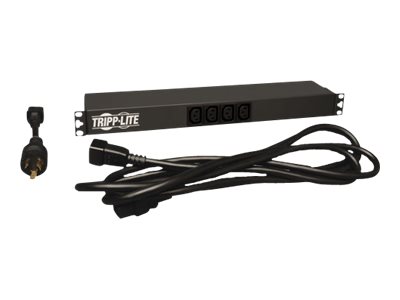

The C20 input plug with detachable 12-foot (3.7 m) cord connects to your facility?s compatible AC power source, generator or protected UPS to distribute power to connected equipment. A NEMA L6-20P adapter is included for 208/240V power environments. The C20 inlet accepts any country-specific power cord with a C19 connector.
The switchless design prevents an accidental shutdown, which could lead to costly downtime. The reversible all-metal housing supports a variety of mounting options, including 1U horizontal or 0U vertical mounting in EIA-standard 19-inch racks, under a counter or on a wall or workbench.
- Product Description Eaton Tripp Lite Series PDU Basic Dual Volt 100V-240V 20A 2 C19; 12 C13 Horizontal 1URM - horizontal rackmount - power distribution unit - 3.8 kW
- Device Type Power distribution unit - rack-mountable
- Weight 3.75 lbs
- Input Voltage AC 100-250 V
- Output Voltage AC 100-250 V
- Power Capacity 3.8 kW
- Input Connectors 1 x power IEC 60320 C20
- Output connectors 2 x power IEC 60320 C19 ¦ 12 x power IEC 60320 C13
- Dimensions (WxDxH) 17.2 in x 3.7 in x 1.8 in
- Manufacturer Warranty 5-year warranty
|
