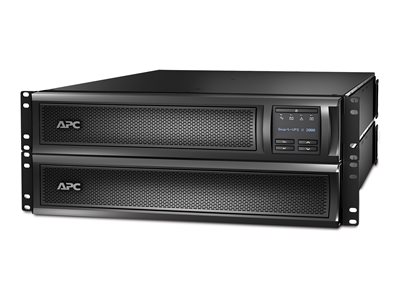

APC Smart-UPS X 2000VA Rack/Tower LCD 100-127V wit
APC Smart-UPS X 2000VA Rack/Tower LCD 100-127V wit
- Price:
$2,857.99
- Availability:
- Mfr #: SMX2000RMLV2UNC
- UNSPSC #: 39121011
- Item #: 03454044
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Serial cable - external ¦ USB cable - external ¦ Power cable - integrated - 8 ft |
| Rack Mounting Kit | Included |
| Equipment Protection Value | 150000 US Dollars |
| Features | User-replaceable removable battery, audible alarm, emergency power off, LCD display, Automatic Voltage Regulation (AVR), LED indicators, overload protection, cold-start function, automatic self-test, predicitive failure notification, hot-swappable batteries |
| Compliant Standards | FCC Class A certified, CSA, TUV, BSMI, NOM, UL 1449, UL 1778, VCCI Class A ITE, EN55022 Class A, FCC Part 15, EN 50091-2, RoHS Exemption 7b, REACH |
| Pricing Type | APC Take-Back |
Networking
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SSH-2 |
Dimensions & Weight
| Width | 17 in |
| Depth | 26.3 in |
| Height | 3.3 in |
| Weight | 84.77 lbs |
Dimensions & Weight (Shipping)
| Shipping Width | 23.5 in |
| Shipping Depth | 34.2 in |
| Shipping Height | 9.6 in |
| Shipping Weight | 100 lbs |
Software / System Requirements
| Software Included | Drivers & Utilities |
Compatibility Information
| Designed For | P/N: AR4012A, AR4017A, AR4032A, AR4038LA, NBPD0150 |
Sustainability Information
| Packaging Recycled Content | Made of recycled cardboard |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - battery - 2 years |
Battery
| Quantity | 1 |
| Technology | Lead acid |
| Run Time (Up To) | 11 min at full load ¦ 27.6 min at half load |
| Recharge Time | 3 hours |
| Features | Maintenance free, sealed, leak-proof |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Sound Emission | 55 dBA |
General
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Color | Black |
| Bundled with | APC Network Management Card 3 with Environmental Monitoring AP9641 |
Power Device
| UPS Technology | Line interactive |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 70 - 153 V |
| Input Voltage Range (Adjustable) | AC 75 - 154 V |
| Frequency Provided | 50/60 Hz |
| Input Connector(s) | 1 x power NEMA 5-20 |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA 5-20 |
| Power Output Connectors Details | 3 x power NEMA 5-15R ¦ 3 x power NEMA 5-20R ¦ 1 x power NEMA L5-20R |
| Output Voltage | AC 120 V 50/60 Hz |
| Power Capacity | 1800 watt / 1920 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 540 joules |
Expansion / Connectivity
| Interfaces | 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - RJ-45 ¦ 1 x EPO (emergency power off) |
| Expansion Slots | 1 (total) / 0 (free) x SmartSlot |
