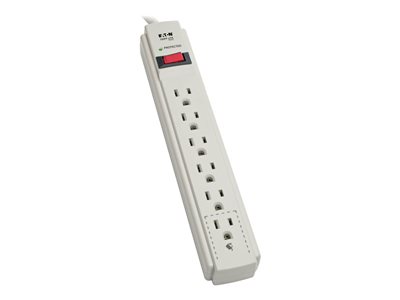

Tripp Lite Protect It TLP615 - surge suppressor - 1.875 kW
Tripp Lite Protect It TLP615 - surge suppressor - 1.875 kW
Need Help?
Contact Zones Online support at 800.408.9663
Compatibility Information
Designed For | P/N: CLAMPUSBLK, CLAMPUSW |
Miscellaneous
Cables Included | Power cable - integrated - 15 ft |
Equipment Protection Value | 20000 US Dollars |
Features | Wall mountable, mounting holes, desk mountable, LED indicators, noise filtering, overload protection |
Compliant Standards | cUL, UL 1363, RoHS, UL 1449 Third Edition, IEEE 587 |
Dimensions & Weight
Width | 1.9 in |
Depth | 1.2 in |
Height | 10.8 in |
Weight | 25.61 oz |
Manufacturer Warranty
Service & Support | Limited warranty - lifetime |
General
Device Type | Surge protector - external |
Color | Light gray |
Localization | Canada, Puerto Rico, United States |
Power Device
Load Rating | Individual PC |
Input Voltage | AC 120 V |
Input Connector(s) | 1 x power NEMA 5-15 |
Frequency Required | 60 Hz |
Input Voltage Range | AC 110 - 125 V |
Frequency Provided | 60 Hz |
Input Connectors | 1 x power NEMA 5-15P |
Power Output Connectors Details | 6 x power NEMA 5-15R |
Output Voltage | 60 Hz |
Max Electric Current | 15 A |
Power Capacity | 1875 Watt |
Surge Suppression | Yes |
Surge Response Time | 1 ns |
Surge Energy Rating | 790 Joules |
EMI/RFI Noise Filtration | 20 dB |
Clamping Level | 150 V |
Max Spike Current | 35500 A |
Circuit Protection | Circuit breaker |
Dimensions & Weight (Shipping)
Shipping Width | 5.8 in |
Shipping Depth | 1.8 in |
Shipping Height | 13.2 in |
Shipping Weight | 28.22 oz |
