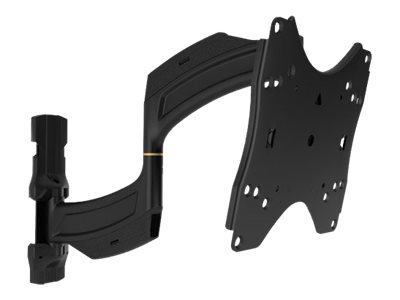

Product Description Chief Thinstall Medium 18" Extension Single Arm Wall Mount - For Displays 32-55" - Black mounting kit - medium - for flat panel - 18" extension - black
Product Type Mounting kit (medium) - wall-mountable
Mounting Components Dual swing arm
Dimensions (WxDxH) 18 in x 13.1 in
Adjustable Depth 3.81-45.62 cm
Tilt 0� to 12�
Pan 180�
Swivel 90�
Adjustments Height, pan, tilt, swivel, extension
Recommended Use Flat panel
Recommended Display Size 32"-55"
VESA Mounting Interface 100 x 100 mm, 200 x 200 mm, 400 x 200 mm, 400 x 400 mm, 300 x 200 mm, 200 x 100 mm, 300 x 300 mm
Max Load Weight 75 lbs
Color Black
Package Content M5 allen key, 4 x M8x12 screws, 4 x M4x12 screws, 4 x M4x25 screws, 4 x M8x20 screws, 4 x M8x30 screws, 4 x M5x12 screws, 4 x M6x12 screws, top cover, 4 x M4x16 screws, 4 x M6x16 screws, 4 x M6x25 screws, 4 x M5x25 screws, 4 x M5x16 screws, 5/32" allen key, 4 x M8 flat washers, 8 x 1/4" flat washer, faceplate, main assembly, top right bracket, bottom cover, top left bracket, 4 universal washer, 3 x 1/4 x 2 1/2" carriage bolt, 3 concrete anchor, 2 roll flange spacer, 2 #10-24 nyloc nut, 8 x 1/4-20 x 3/8", 3/16" allen key, 1/8" allen key
