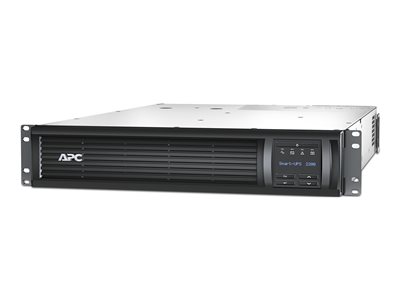

SMART-UPS 2200VA LCD RM 2U 120V
SMART-UPS 2200VA LCD RM 2U 120V
- Price:
$2,243.99
- Availability:
- Mfr #: SMT2200RMUS
- UNSPSC #: 26111701
- Item #: 04074661
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| TAA Compliant | Yes |
Networking
| Remote Management Interface | USB |
Dimensions & Weight
| Width | 18.9 in |
| Depth | 26.9 in |
| Height | 3.4 in |
| Weight | 93.28 lbs |
Dimensions & Weight (Shipping)
| Shipping Width | 23.6 in |
| Shipping Depth | 38.6 in |
| Shipping Height | 10 in |
| Shipping Weight | 109.63 lbs |
Software / System Requirements
| Software Included | Drivers & Utilities |
Compatibility Information
| Designed For | P/N: AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR4012A, AR4017A, AR4032A, AR4038LA, NBPD0150 |
Sustainability Information
| Packaging Recycled Content | Made of recycled cardboard |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - battery - 2 years |
Battery
| Quantity | 1 |
| Technology | Lead acid |
| Run Time (Up To) | 5 min at full load ¦ 16 min at half load |
| Recharge Time | 3 hours |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Sound Emission | 55 dBA |
General
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 2U |
| Color | Black |
| Localization | United States |
Power Device
| UPS Technology | Line interactive |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 82 - 143 V |
| Input Voltage Range (Adjustable) | AC 75 - 154 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 1-phase |
| Input Connector(s) | 1 x power NEMA L5-20 |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L5-20 |
| Power Output Connectors Details | 6 x power NEMA 5-15R ¦ 2 x power NEMA 5-20R |
| Output Voltage | AC 120 V ± 5% - 50/60 Hz |
| Power Capacity | 1980 watt / 2200 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 530 joules |
Expansion / Connectivity
| Interfaces | 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
