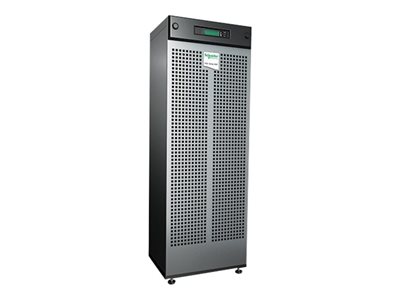

MGE Galaxy 3500 with 4 Battery Modules - UPS - 16 kW - 20000 VA
MGE Galaxy 3500 with 4 Battery Modules - UPS - 16 kW - 20000 VA
- Price:
$14,083.99
- Availability:
- Mfr #: G35T20KF4B4S
- UNSPSC #: 39121011
- Item #: 000060895
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | Bolt down brackets |
| Cables Included | Serial cable - external |
| Features | Built-in maintenance bypass, built-in static bypass |
| Compliant Standards | ISO 9001, cUL, UL 1778, ISO 14001 |
Networking
| Remote Management Interface | RS-232 |
| Remote Management Protocol | SNMP, HTTP |
Dimensions & Weight
| Width | 20.6 in |
| Depth | 33 in |
| Height | 58.7 in |
| Weight | 1386.69 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 1 year |
| Service & Support Details | Limited warranty - 1 year |
Battery
| Type | Expandable |
| Quantity | 4 |
| Technology | Lead acid |
| Run Time (Up To) | 18.8 min at full load |
| Recharge Time | 5 hours |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Sound Emission | 55 dBA |
General
| Output Connectors | 3 x terminal block (screw), hardwire 4-wire (3PH + G), hardwire 5-wire (3PH + N + G) |
Power Device
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 160 - 240 V |
| Frequency Provided | 57 - 63 Hz |
| Input Wiring | 3-phase |
| Frequency Required | 40 - 70 Hz |
| Input Connector(s) | Hardwire 5-wire (3PH + N + G) |
| Input Connectors | Hardwire 5-wire (3PH + N + G) |
| Power Output Connectors Details | 1 x hardwire 4-wire (3PH + G) ¦ 1 x hardwire 5-wire (3PH + N + G) ¦ 1 x terminal block (screw) |
| Output Voltage | AC 120/208/220 V ± 3% - 57 - 63 Hz |
| Power Capacity | 16 kW / 20000 VA |
| Output Waveform | Sinewave |
Expansion / Connectivity
| Expansion Slot(s) | SmartSlot |
| Interfaces | 1 x management (RS-232) |
| Expansion Slots | SmartSlot |
Dimensions & Weight (Shipping)
| Shipping Width | 25.6 in |
| Shipping Depth | 41.7 in |
| Shipping Height | 64.6 in |
| Shipping Weight | 1455.04 lbs |
Software / System Requirements
| Software Included | Drivers & Utilities |
