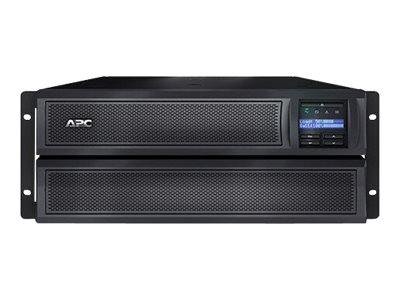

APC Smart-UPS X 2000 Rack/Tower LCD - UPS - 1800 Watt - 1920 VA
APC Smart-UPS X 2000 Rack/Tower LCD - UPS - 1800 Watt - 1920 VA
- Price:
$1,620.99
- Availability:
- Mfr #: SMX2000LV
- UNSPSC #: 39121011
- Item #: 001140863
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Compatibility Information
| Designed For | P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR201, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3810, AR3812, AR3814, AR4000MV, AR4000MVX429, AR4000MVX432, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR7050, AR7057, AR8135BLK, NBWL0356A, SMX2200HV, SMX2200HVNC, SMX3000HV, SMX3000LVNC, SMX3000LVNCUS, SU2200R3X167 |
Miscellaneous
| Included Accessories | Tower stand |
| Cables Included | Serial cable - external ¦ USB cable - external ¦ Power cable 8 ft |
| Rack Mounting Kit | Included |
| Features | Audible alarm, LCD display, Automatic Voltage Regulation (AVR), LED indicators, hot-swappable batteries |
| Compliant Standards | CSA, TUV, BSMI, NOM, UL 1449, UL 1778, EN55022 Class A, EN 50091-2, RoHS, FCC Part 15 A, REACH, VCCI Class A |
Networking
| Remote Management Interface | RS-232, USB |
Dimensions & Weight
| Width | 7 in |
| Depth | 19 in |
| Height | 17 in |
| Weight | 85.19 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years |
| Service & Support Details | Limited warranty - 3 years ¿ Limited warranty - batteries - 2 years |
Battery
| Quantity | 1 |
| Technology | Lead acid |
| Run Time (Up To) | 11 min at full load ¦ 28 min at half load |
| Recharge Time | 3 hours |
| Switchover Time | 2 ms |
| Transfer Time | 2 ms |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Sound Emission | 55 dBA |
General
| Device Type | UPS - rack-mountable / external |
| Battery Enclosure Type | Internal |
| Height (Rack Units) | 4U |
| Color | Black |
| Localization | Canada, United States |
Power Device
| UPS Technology | Line interactive |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 70 - 153 V |
| Input Voltage Range (Adjustable) | AC 75 - 154 V |
| Frequency Provided | 47 - 53 / 57 - 63 Hz |
| Input Connector(s) | 1 x power NEMA 5-20 |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA 5-20 |
| Power Output Connectors Details | 6 x power NEMA 5-15 ¦ 3 x power NEMA 5-20 ¦ 1 x power NEMA L5-20 |
| Output Voltage | AC 120 V ± 5% - 47 - 53 / 57 - 63 Hz |
| Power Capacity | 1800 Watt / 1920 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 540 Joules |
Expansion / Connectivity
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) |
| Expansion Slot(s) | 1 (total) / 1 (free) x SmartSlot |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
Dimensions & Weight (Shipping)
| Shipping Width | 23.1 in |
| Shipping Depth | 24.9 in |
| Shipping Height | 13 in |
| Shipping Weight | 105.23 lbs |
Software / System Requirements
| Software Included | Drivers & Utilities |
