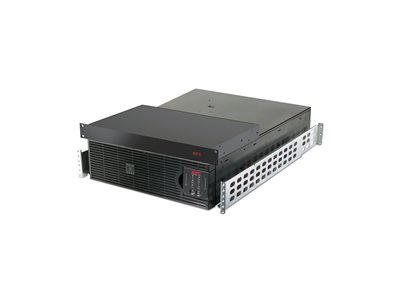

APC Smart-UPS RT 2200 Marine - UPS - 1.54 kW - 2200 VA
APC Smart-UPS RT 2200 Marine - UPS - 1.54 kW - 2200 VA
- Price:
$2,253.99
- Availability:
- Mfr #: SURTD2200XLIM
- UNSPSC #: 39121011
- Item #: 001149854
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Serial cable - external |
| Rack Mounting Kit | Included |
| Features | Audible alarm, emergency power off, internal bypass, LED indicators |
| Compliant Standards | EN 60950, EN 61000-3-2, UL 1449, EN55022 Class A, EN 50091-2, RoHS, EN 50091-1, REACH |
Networking
| Remote Management Interface | RS-232 |
Dimensions & Weight
| Width | 5.1 in |
| Depth | 26 in |
| Height | 17 in |
| Weight | 120.37 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 2 years |
| Service & Support Details | Limited warranty - 2 years |
Battery
| Quantity | 2 |
| Technology | Lead acid |
| Run Time (Up To) | 21 min at full load ¦ 48 min at half load |
| Recharge Time | 2.5 hours |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 0 - 95% |
| Sound Emission | 55 dBA |
General
| Device Type | UPS - external |
| Battery Enclosure Type | Plug-in module |
| Height (Rack Units) | 3U |
| Color | Black |
Power Device
| UPS Technology | On-line |
| Input Voltage | AC 220/230/240 V |
| Input Voltage Range | AC 180 - 280 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Power Output Connectors Details | 8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19 |
| Output Voltage | AC 220/230/240 V ± 3% - 50/60 Hz |
| Power Capacity | 1.54 kW / 2200 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 480 Joules |
Expansion / Connectivity
| Expansion Slot(s) | 1 SmartSlot |
| Interfaces | 1 x management (RS-232) - RJ-45 ¦ 1 x EPO (emergency power off) |
| Expansion Slots | 1 SmartSlot |
Dimensions & Weight (Shipping)
| Shipping Width | 23.7 in |
| Shipping Depth | 38.6 in |
| Shipping Height | 13.7 in |
| Shipping Weight | 140.21 lbs |
Software / System Requirements
| Software Included | Drivers & Utilities |
