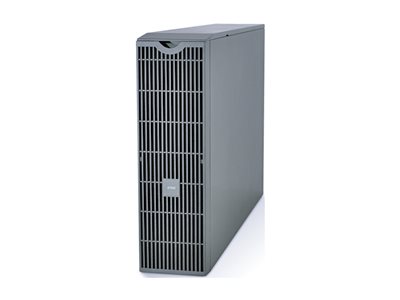

APC Isolation Transformer - transformer - 3000 VA

APC Isolation Transformer - transformer - 3000 VA

  • Price:
    $1,073.99
  • Availability:
  • Mfr #:  SURT001
  • UNSPSC #:  44103116
  • Item #:  001195055
  • Add to Shopping List
  • cnet cat code #:  10060905
Need Help? Contact Zones Online support at 800.408.9663
Compatibility Information
Designed For APC Smart-UPS RT 3000
Miscellaneous
Compliant Standards FCC Class A certified, UL, C-Tick, EN 60950, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5
Dimensions & Weight
Width 17 in
Depth 26 in
Height 5.1 in
Weight 125.22 lbs
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Service & Support Details Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature 32 F
Max Operating Temperature 104 F
Min Storage Temperature -13 F
Max Storage Temperature 149 F
Humidity Range Operating 0 - 95%
Humidity Range Storage 0 - 95%
General
Device Type Transformer - external
Height (Rack Units) 3U
Rack Size 19"
Color Black
Output Connectors 1 x power IEC 60320 C19
Power Device
Input Voltage AC 230 V
Input Voltage Range AC 220 - 240 V
Input Voltage Range (Adjustable) AC 170 - 280 V
Frequency Required 45 - 65 Hz
Input Connectors 1 x power IEC 60320 C20
Input Connector(s) 1 x power IEC 320 EN 60320 C20
Power Output Connectors Details 1 x power IEC 60320 C19
Output Voltage AC 230 V
Power Capacity 3000 VA
Circuit Protection Circuit breaker
