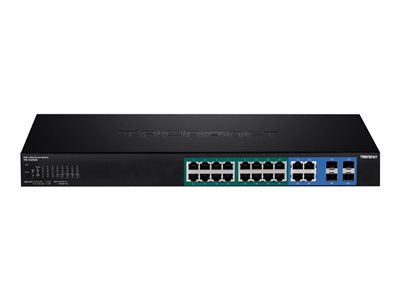

TRENDnet TPE 1620WS 16-Port Gigabit Web Smart PoE+ Switch - switch - 1
TRENDnet TPE 1620WS 16-Port Gigabit Web Smart PoE+ Switch - switch - 1
- Price:
$335.99
- Availability:
- Mfr #: TPE-1620WS
- UNSPSC #: 44103116
- Item #: 001205228
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Rack Mounting Kit | Included |
| Compliant Standards | FCC, RoHS, WEEE |
| TAA Compliant | Yes |
Dimensions & Weight
| Width | 17.3 in |
| Depth | 9.9 in |
| Height | 1.7 in |
| Weight | 7.94 lbs |
Manufacturer Warranty
| Service & Support Details | Limited warranty - 3 years |
| Service & Support | Limited warranty - lifetime |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
General
| Device Type | Switch - 16 ports - managed |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 (PoE+) + 2 x shared Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 185 W |
| Performance | Switching capacity: 32 Gbps ¦ Forwarding performance: 23.8 Mpps |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv6 routing |
| Remote Management Protocol | SNMP 1, RMON 1, SNMP 3, SNMP 2c, HTTP, HTTPS |
| Encryption Algorithm | TLS, SSL 3.0, SSL 2.0 |
| Authentication Method | RADIUS, TACACS+ |
| Features | DHCP support, VLAN support, port mirroring, Weighted Round Robin (WRR) queuing, MAC address filtering, IPv6 support, GREENnet technology, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Jumbo Frames support, reset button, bandwidth control, LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), Dynamic VLAN Support (GVRP), Network Access Control (NAC), Strict Priority Queuing (SPQ), Neighbor Discovery Protocol (NDP), Class of Service (CoS), tagged VLAN, Loopback, Denial of Service (DoS), Duplicated Address Detection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Flash Memory | 8 MB |
Expansion / Connectivity
| Interfaces | 16 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 2 x SFP |
Power
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 198 Watt |
Software / System Requirements
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits) |
