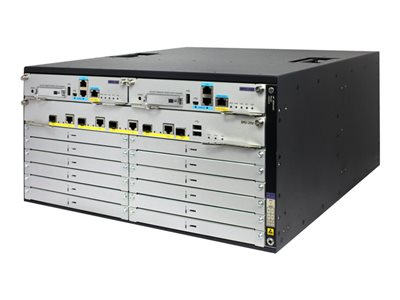

- Product Description HPE MSR4080 - modular expansion base - desktop, rack-mountable
- Device Type Modular expansion base
- Enclosure Type Desktop, rack-mountable - modular - 5U
- Network / Transport Protocol TCP/IP, UDP/IP, L2TP, RSVP, NTP, IPSec, ARP, DHCP
- Routing Protocol OSPF, RIP, BGP-4, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng, MLD, MPLS, Bidirectional Forwarding Detection (BFD)
- Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI
- Features Firewall protection, DHCP support, NAT support, VPN support, ARP support, MPLS support, IGMP snooping, Syslog support, port mirroring, IPv6 support, Weighted Fair Queuing (WFQ), Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), MLD snooping, Bidirectional Forwarding Detection (BFD), Unicast Reverse Path Forwarding (URPF), Dynamic Virtual Private Network (DVPN), Network Quality Analyzer (NQA), Multicast Source Discovery Protocol (MSDP), Multicast Border Gateway Protocol (MBGP)
- Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
- Power AC 120/230 V (50/60 Hz) - power supply not installed
- Dimensions (WxDxH) 17.3 in x 18.9 in x 8.6 in
- Weight 49.93 lbs
- Manufacturer Warranty 1-year warranty
|
