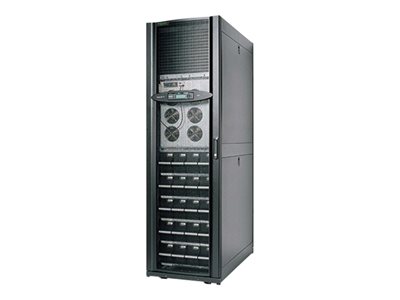

APC Smart-UPS VT ISX with 3 Battery Modules Expandable to 5 - power ar
APC Smart-UPS VT ISX with 3 Battery Modules Expandable to 5 - power ar
- Price:
$19,584.99
- Availability:
- Mfr #: SUVTR30KH3B5S
- UNSPSC #: 39121011
- Item #: 001403186
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Cables Included | Serial cable - external |
| Features | Audible alarm, emergency power off, LCD display, built-in maintenance bypass, built-in static bypass, LED indicators |
| Compliant Standards | C-Tick, ISO 9001, IEC 61000-3-2, IEC 61000-3-3, ISO 14001, EN 50091-2, IEC 62040-3 |
Networking
| Remote Management Interface | Ethernet 10/100 |
| Remote Management Protocol | SNMP, HTTP |
Dimensions & Weight
| Width | 23.6 in |
| Depth | 42.5 in |
| Height | 78.7 in |
| Weight | 1646.84 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 1 year ¦ Installation |
| Service & Support Details | Limited warranty - 1 year ¿ Installation |
Battery
| Quantity | 5 (installed) / 5 (supported) |
| Technology | Lead acid |
| Run Time (Up To) | 5.5 min at full load |
| Recharge Time | 3 hours |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Sound Emission | 67 dBA |
General
| Device Type | Power array - external |
| Battery Enclosure Type | Internal |
| Color | Black |
| Output Connectors | 13 x power IEC 60320 C19, hardwire 5-wire (3PH + N + G) |
Power Device
| UPS Technology | On-line |
| Input Voltage | AC 400 V |
| Input Voltage Range | AC 304 - 477 V |
| Frequency Provided | 50 Hz |
| Input Wiring | 3-phase |
| Frequency Required | 40 - 70 Hz |
| Input Connector(s) | 1 x hardwire 5-wire (3PH + N + G) |
| Input Connectors | 1 x hardwire 5-wire (3PH + N + G) |
| Power Output Connectors Details | 1 x hardwire 5-wire (3PH + N + G) ¦ 12 x power IEC 60320 C19 |
| Output Voltage | AC 230/380/400/415 V ± 5% - 50 Hz |
| Power Capacity | 30000 VA |
| Output Waveform | Sinewave |
| Circuit Protection | Circuit breaker |
Expansion / Connectivity
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (Ethernet) - RJ-45 |
Software / System Requirements
| Software Included | Drivers & Utilities |
