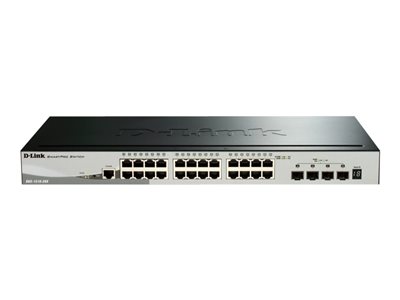

D-Link SmartPro DGS-1510-28X - switch - 28 ports - managed - rack-mountable

D-Link SmartPro DGS-1510-28X - switch - 28 ports - managed - rack-mountable

  • Price:
    $450.99
  • Availability:  In stock
  • Mfr #:  DGS-1510-28X
  • UNSPSC #:  43222612
  • Item #:  002061585
  • Add to Shopping List
  • cnet cat code #:  10050202
Need Help? Contact your Zones Account Manager or call 800.408.9663
Miscellaneous
Compliant Standards VCCI, C-Tick, BSMI, cUL, CB, CCC, FCC
Dimensions & Weight
Width 17.3 in
Depth 8.3 in
Height 1.7 in
Weight 4.41 lbs
Environmental Parameters
Min Operating Temperature 23 F
Max Operating Temperature 122 F
Humidity Range Operating 0 - 95% (non-condensing)
Min Storage Temperature -4 F
Max Storage Temperature 158 F
Humidity Range Storage 0 - 95% (non-condensing)
General
Device Type Switch - 28 ports - L3 - managed - stackable
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 + 4 x 10 Gigabit SFP+
Performance Switching capacity: 128 Gbps Forwarding performance (64-byte packet size): 95.24 Mpps Stacking bandwidth: 20 Gbps
Capacity ARP entries: 256 IPv6 routing table entries: 32 IPv4 routing table entries: 64 ACL entries: 256 ACL rules: 768 IGMP groups: 512 Layer 2 multicast addresses: 128
MAC Address Table Size 16000 entries
Jumbo Frame Support 9000 bytes
Max Units In A Stack 6
Routing Protocol Static IPv4 routing, static IPv6 routing
Remote Management Protocol SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
Encryption Algorithm SSL, TLS, SSL 3.0, SSL 2.0, PEAP, TTLS
Authentication Method RADIUS, Secure Shell v.2 (SSH2)
Features Flow control, full duplex capability, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), Safeguard Engine, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, Deficit Weighted Round Robin (DWRR), LLDP support, IP-MAC binding, SNMP trap, DHCP client, Energy Efficient Ethernet, Strict Priority Queuing (SPQ), Class of Service (CoS), tagged VLAN, Generic VLAN Registration Protocol (GVRP), D-Link Single IP Management (SIM), DiffServ Code Point (DSCP) support
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3az
Expansion / Connectivity
Interfaces 24 x 1000Base-T RJ-45 4 x 10GBase-X SFP+ 1 x console RJ-45 management
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 22.3 Watt
