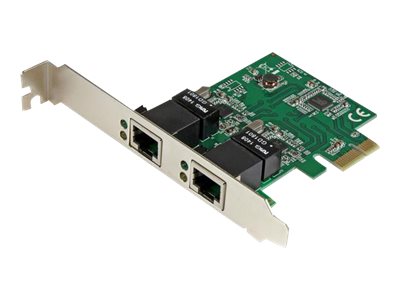

Add dual Gigabit Ethernet ports to a client, server or workstation through a PCI Express slot. The ST1000SPEXD4 PCI Express Dual-Port Gigabit Network Card lets you add two gigabit Ethernet ports to a client, server or workstation through a single PCIe slot. Each port provides 10/100/1000 Mbps capable Ethernet and is fully compatible with IEEE 802.3/u/ab standards.
Suitable for any standard PCI Express-enabled system, the 2-port Ethernet card supports full-duplex flow control for maximum data transfer speeds of up to 2000 Mbps - an ideal 2-port NIC for setting up dual-homed, or multi-homed host configurations providing added security to corporate networks.
The dual-port server adapter is compliant with the PCIe 2.0 standard and features support for Jumbo Frames and 802.1q VLAN tagging as well as Wake on LAN (WoL). The adapter includes an optional low-profile / half-height bracket that can be used for installation into a standard or small form-factor computer chassis.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
- Product Description StarTech.com Dual Port Gigabit PCI Express Server Network Adapter Card - 1 Gbps PCIe NIC - Dual Port Server Adapter - 2 Port Ethernet Card (ST1000SPEXD4) - network adapter - PCIe - Gigabit Ethernet x 2
- Device Type Network adapter
- Form Factor Plug-in card - low profile
- Interface (Bus) Type PCI Express x1
- Ports Gigabit Ethernet x 2
- Dimensions (WxDxH) 0.7 in x 3.6 in x 4.7 in
- Weight 1.9 oz
- Cabling Type Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
- Data Link Protocol 10Mb LAN, 100Mb LAN, GigE
- Data Transfer Rate 1 Gbps
- Processor 1 x Realtek Semiconductor RTL8111E
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x
- System Requirements Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Apple MacOS X 10.4 - 10.9, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019
- Manufacturer Warranty 2-year warranty
- Designed For P/N: ET91000SM10, ET91000SM20
|
