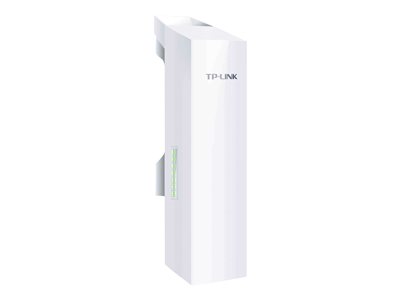

TP-Link CPE210 - wireless access point
TP-Link CPE210 - wireless access point
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Included Accessories | PoE injector, pole mount |
| Compliant Standards | FCC, RoHS, IPX5 |
Networking
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 300 Mbps |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz |
| Features | Routing, power over Ethernet (PoE), auto-uplink (auto MDI/MDI-X), repeating mode, Access Point operational mode, MIMO technology, 15 KV Electrostatic Discharge Protection, WISP mode, wireless bridge mode, Wireless Client Mode, weatherproof |
| Encryption Algorithm | AES, 128-bit WEP, 64-bit WEP, 152-bit WEP, TKIP, WPA, WPA2, WPA-PSK, WPA2-PSK |
| Compliant Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Environmental Parameters
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
General
| Device Type | Wireless access point |
| Ruggedized Design | Outdoor |
| Width | 3.1 in |
| Depth | 2.4 in |
| Height | 8.8 in |
Processor / Memory / Storage
| Processors Installed | 560 MHz |
| RAM | 64 MB DDR2 SDRAM |
| Flash Memory | 8 MB |
Expansion / Connectivity
| Interfaces | 2 x 100Base-TX (PoE) - RJ-45 |
Power
| Power Over Ethernet (PoE) Supported | PoE |
| Voltage Required | DC 16 - 27 V |
| Power Consumption Operational | 10.5 Watt |
Antenna
| Antenna | Internal |
| Antenna Qty | 1 |
| Directivity | Directional |
| Gain Level | 9 dBi |
Software / System Requirements
| OS Required | UNIX, Apple MacOS, Novell NetWare, Microsoft Windows 98 Second Edition, Linux, Microsoft Windows NT, Microsoft Windows 2000/XP/Vista/7/8 |
