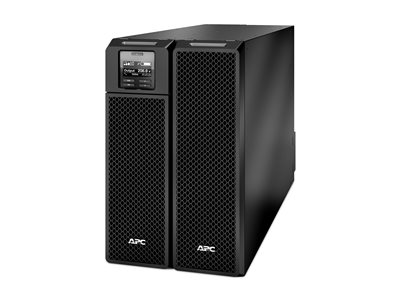

APC Smart-UPS On-Line 10000VA - UPS - 10 kW - 10000 VA
APC Smart-UPS On-Line 10000VA - UPS - 10 kW - 10000 VA
- Price:
$10,888.99
- Availability:
- Mfr #: SRT10KXLT
- UNSPSC #: 39121011
- Item #: 002596548
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Features | Audible alarm, LCD display |
| Compliant Standards | NOM, UL 1778, RoHS, FCC Part 15 A, REACH, CSA C22.2 No. 107.3, IP20 |
Networking
| Remote Management Interface | Ethernet 10/100, RS-232, USB |
Dimensions & Weight
| Width | 10.4 in |
| Depth | 28.1 in |
| Height | 17 in |
| Weight | 245.99 lbs |
Environmental Standards
| ENERGY STAR | Yes |
Dimensions & Weight (Shipping)
| Shipping Width | 23.6 in |
| Shipping Depth | 3.3 ft |
| Shipping Height | 18.1 in |
| Shipping Weight | 278.99 lbs |
Compatibility Information
| Designed For | P/N: SRT5KRMTF, SRT5KTF |
Sustainability Information
| ENERGY STAR | Yes |
Manufacturer Warranty
| Service & Support Details | Limited warranty - 3 years ¿ Limited warranty - batteries - 2 years |
Battery
| Technology | Lead acid |
| Recharge Time | 1.5 hours |
| Features | Maintenance free, sealed, leak-proof |
Environmental Parameters
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 55 dBA |
General
| Device Type | UPS - external |
| Color | Black |
| Height (Rack Units) | 6U |
Power Device
| UPS Technology | On-line |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 160 - 275 V |
| Input Voltage Range (Adjustable) | AC 100 - 275 V |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Input Connector(s) | Hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G) |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x hardwire 3-wire (2PH + G) |
| Power Output Connectors Details | 4 x power NEMA L6-20R ¦ 2 x power NEMA L6-30R ¦ 1 x hardwire 3-wire (2PH + G) |
| Output Voltage | AC 208 V ± 2% - 50/60 Hz |
| Power Capacity | 10 kW / 10000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 480 Joules |
| Efficiency | 98% |
Expansion / Connectivity
| Interfaces | 1 x management (Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) ¦ 1 x serial - RJ-45 |
| Expansion Slot(s) | 1 (total) / 1 (free) x SmartSlot |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
