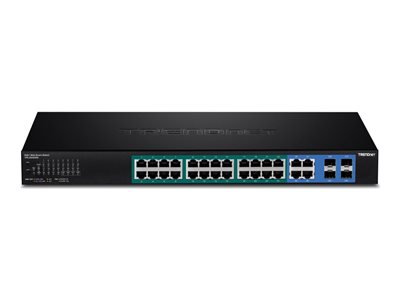

TRENDnet TPE TPE-2840WS 28-Port Gigabit Web Smart PoE+ Switch - switch
TRENDnet TPE TPE-2840WS 28-Port Gigabit Web Smart PoE+ Switch - switch
- Price:
$402.99
- Availability:
- Mfr #: TPE-2840WS
- UNSPSC #: 43222612
- Item #: 002707611
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Rack Mounting Kit | Included |
| MTBF | 257,362 hours |
| Compliant Standards | UL 60950, FCC, RoHS, WEEE |
| TAA Compliant | Yes |
Dimensions & Weight
| Width | 17.3 in |
| Depth | 9.8 in |
| Height | 1.7 in |
| Weight | 8.38 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
| Service & Support Details | Limited warranty - 3 years |
Environmental Parameters
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
General
| Device Type | Switch - 28 ports - managed |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (PoE+) + 20 x 10/100/1000 (PoE) + 4 x SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 185 W |
| Performance | Switching capacity: 56 Gbps ¦ Forwarding performance (64-byte packet size): 41.7 Mpps |
| MAC Address Table Size | 16K entries |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv6 routing |
| Remote Management Protocol | SNMP 1, RMON 1, SNMP 3, SNMP 2c, HTTP, HTTPS |
| Encryption Algorithm | TLS, SSL 3.0, SSL 2.0 |
| Authentication Method | RADIUS, TACACS+ |
| Features | DHCP support, VLAN support, Weighted Round Robin (WRR) queuing, IPv6 support, GREENnet technology, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Cable Test (VCT) technology, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), RADIUS support, reset button, Management Information Base (MIB), Dynamic VLAN Support (GVRP), Class of Service (CoS), tagged VLAN, Loopback, Denial of Service (DoS), Duplicated Address Detection, per port bandwidth control, DiffServ Code Point (DSCP) support, PoE overcurrent protection, PoE circuit sorting protection, 3 fans |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| RAM | 1 MB |
| Status Indicators | Power, PoE, link/activity, SFP |
Expansion / Connectivity
| Interfaces | 4 x 1000Base-T RJ-45 PoE+ ¦ 20 x 1000Base-T RJ-45 PoE ¦ 4 x SFP |
Power
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 240.2 Watt |
Software / System Requirements
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows Server 2003, Microsoft Windows Server 2008, Microsoft Windows Vista / XP / 7 / 8 / 8.1 |
