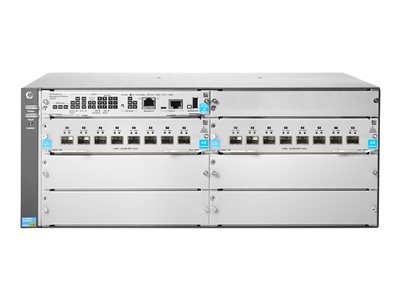

- Product Description HPE Aruba 5406R 16-port SFP+ (No PSU) v3 zl2 - switch - 16 ports - managed - rack-mountable
- Device Type Switch - 16 ports - managed
- Enclosure Type Rack-mountable 4U
- Subtype 10 Gigabit Ethernet
- Ports 16 x 1 Gigabit / 10 Gigabit SFP+
- Performance Routing/switching capacity: 960 Gbps ¦ Throughput: up to 571.4 Mpps ¦ Switching fabric bandwidth: 1015 Gbps
- Capacity IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000
- MAC Address Table Size 64K entries
- Jumbo Frame Support Yes
- Routing Protocol RIP-1, RIP-2, BGP, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPFv3, static IPv6 routing, MLDv2, MLD
- Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SMON, CLI, XRMON
- Features Flow control, routing, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, IPv6 support, half duplex mode, full duplex mode, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunneling, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Non-Stop Routing (NSR), bandwidth control, STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, DHCP relay, Port Security, fan tray, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), dynamic ARP protection, DHCP protection, dual firmware images, Class of Service (CoS), sFlow v5, GARP VLAN Registration Protocol (GVRP), Type of Service (ToS), MACsec support
- Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1AX
- Dimensions (WxDxH) 17.5 in x 17.8 in x 6.9 in
- Weight 28.11 lbs
- Manufacturer Warranty Limited lifetime warranty
|
