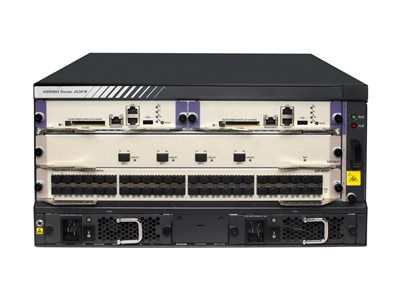

- Product Description HPE HSR6802 - modular expansion base - rack-mountable
- Device Type Modular expansion base
- Enclosure Type Rack-mountable - modular - 5U
- Performance Throughput: up to 120 Mpps ¦ Backplane speed: 1024 Gbps
- Capacity IPv4 routing table entries: 4000000 ¦ IPv6 routing table entries: 2000000 ¦ IPv4 forwarding table entries: 1000000 ¦ IPv6 forwarding table entries: 1000000
- Network / Transport Protocol TCP/IP, UDP/IP, L2TP, RSVP, NTP, IPSec, ARP, DHCP
- Routing Protocol OSPF, RIP, BGP-4, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng, MLD, MPLS, Bidirectional Forwarding Detection (BFD)
- Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI
- Features Firewall protection, DHCP support, NAT support, VPN support, ARP support, MPLS support, IGMP snooping, Syslog support, port mirroring, IPv6 support, WFQ, RSTP support, VRRP support, MSTP support, TFTP support, ACL support, QoS, CAR, MLD snooping, BFD, URPF, DVPN, NQA, MSDP, MBGP
- Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1ah, IEEE 802.1ag, IEEE 802.1AX
- Power AC 120/230 V (50/60 Hz) - power supply not installed
- Dimensions (WxDxH) 17.2 in x 18.9 in x 8.7 in
- Weight 50.15 lbs
- Manufacturer Warranty 1-year warranty
|
