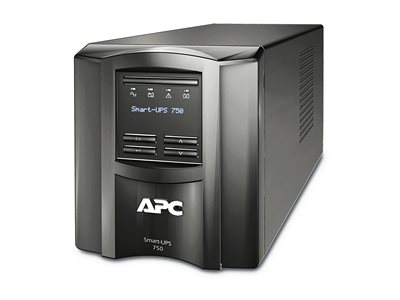

APC Smart-UPS 750 LCD - UPS - 500 Watt - 750 VA
APC Smart-UPS 750 LCD - UPS - 500 Watt - 750 VA
- Price:
$592.99
- Availability:
- Mfr #: SMT750I
- UNSPSC #: 39121011
- Item #: 003191271
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Compatibility Information
| Designed For | P/N: AR4000MV, AR4000MVX429, AR4000MVX432, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432 |
Miscellaneous
| Features | Audible alarm, LCD display |
| Compliant Standards | C-Tick, UL 1449, VDE, EN 50091-2, RoHS, EN 50091-1, REACH |
Networking
| Remote Management Interface | RS-232, USB |
Dimensions & Weight
| Width | 5.4 in |
| Depth | 14.3 in |
| Height | 6.3 in |
| Weight | 29.06 lbs |
Manufacturer Warranty
| Service & Support Details | Limited warranty - 3 years ¿ Limited warranty - batteries - 2 years |
Battery
| Technology | Lead acid |
| Run Time (Up To) | 5 min at full load |
Environmental Parameters
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Sound Emission | 40 dBA |
General
| Output Connectors | 6 x power IEC 60320 C13 |
Power Device
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 160 - 280 V |
| Input Voltage Range (Adjustable) | AC 151 - 302 V |
| Frequency Provided | 47 - 53 / 57 - 63 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power IEC 60320 C14 |
| Power Output Connectors Details | 6 x power IEC 60320 C13 ¦ 2 x IEC jumper |
| Output Voltage | AC 230 V 47 - 53 / 57 - 63 Hz |
| Power Capacity | 500 Watt / 750 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 540 Joules |
Expansion / Connectivity
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x USB |
| Expansion Slots | 1 SmartSlot |
