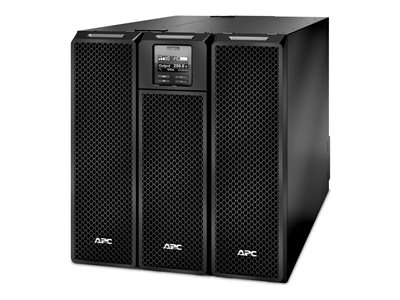

APC Smart-UPS SRT 8000VA - UPS - 8000 Watt - 8000 VA - with 208/240V t
APC Smart-UPS SRT 8000VA - UPS - 8000 Watt - 8000 VA - with 208/240V t
- Price:
$11,666.99
- Availability:
- Mfr #: SRT8KXLT-5KTF
- UNSPSC #: 43211600
- Item #: 003295293
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | NOM, UL 1778, RoHS, FCC Part 15 A, REACH, CSA C22.2 No. 107.3, IP20 |
Networking
| Remote Management Interface | Ethernet 10/100, USB |
Dimensions & Weight
| Width | 15.4 in |
| Depth | 28.1 in |
| Height | 17 in |
| Weight | 370.99 lbs |
Environmental Standards
| ENERGY STAR | Yes |
Dimensions & Weight (Shipping)
| Shipping Width | 23.7 in |
| Shipping Depth | 39.4 in |
| Shipping Height | 31.8 in |
| Shipping Weight | 419.01 lbs |
Compatibility Information
| Designed For | P/N: SRT192BP2, SRT192BP2US, SRT192RMBP2, SRT192RMBP2US |
Sustainability Information
| ENERGY STAR | Yes |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - battery - 2 years |
| Service & Support Details | Limited warranty - 3 years ¿ Limited warranty - batteries - 2 years |
Battery
| Technology | Lead acid |
| Run Time (Up To) | 5 min at full load ¦ 14 min at half load |
| Recharge Time | 1.5 hour(s) |
| Features | Maintenance free, sealed, leak-proof |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 55 dBA |
General
| Device Type | UPS - rack-mountable / external |
| Color | Black |
| Output Connectors | 18 x power NEMA L6-30, power NEMA L14-30, power NEMA L6-20, hardwire 3-wire (2PH + G), power NEMA 5-20R |
| Bundled with | 208/240V to 120V Step-Down Transformer |
Power Device
| UPS Technology | On-line |
| Input Voltage | AC 208/240 V |
| Input Voltage Range | AC 160 - 275 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 1-phase |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x hardwire 3-wire (2PH + G) |
| Power Output Connectors Details | 1 x hardwire 3-wire (2PH + G) ¦ 8 x power NEMA 5-20R ¦ 1 x power NEMA L14-30R ¦ 6 x power NEMA L6-20R ¦ 2 x power NEMA L6-30R |
| Output Voltage | AC 120/208/240 V ± 2% - 50/60 Hz |
| Power Capacity | 8000 Watt / 8000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 480 Joules |
Expansion / Connectivity
| Interfaces | 1 x management (Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) ¦ 1 x serial - RJ-45 |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
