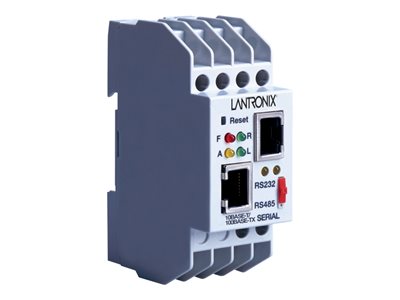

Lantronix Industrial Device Server XPress DR - device server
Lantronix Industrial Device Server XPress DR - device server
- Price:
$428.99
- Availability:
- Mfr #: XSDRSN-03
- UNSPSC #: 43222630
- Item #: 003519155
- Add to Shopping List
Need Help?
Contact Zones Online support at 800.408.9663
Miscellaneous
| Compliant Standards | CSA, VCCI, RoHS, ERP, UL Class I Division 2, RCM |
Networking
| Form Factor | DIN rail mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232, RS-422, RS-485 |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, ARP, BOOTP, DHCP |
| Remote Management Protocol | SNMP, Telnet, HTTP, TFTP |
| Status Indicators | Link OK, fail, active, transmit, receive, ready |
| Features | Flow control, 2 kV Port to Port Isolation |
Manufacturer Warranty
| Service & Support | Limited warranty - 1 year |
| Service & Support Details | Limited warranty - 1 year |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
General
| Device Type | Device server |
| Width | 3.5 in |
| Depth | 2.4 in |
| Height | 1.4 in |
Expansion / Connectivity
| Interfaces | 1 x 100Base-TX - RJ-45 ¦ 1 x RS-232/422/485 - RJ-45 ¦ 1 x RS-232/422/485 - terminal block (screw) |
Power
| Voltage Required | AC 9 - 24 V / DC 9 - 30 V |
| Power Consumption Operational | 3 Watt |
Software / System Requirements
| Software Included | Lantronix DeviceInstaller |
| OS Required | Microsoft Windows |
